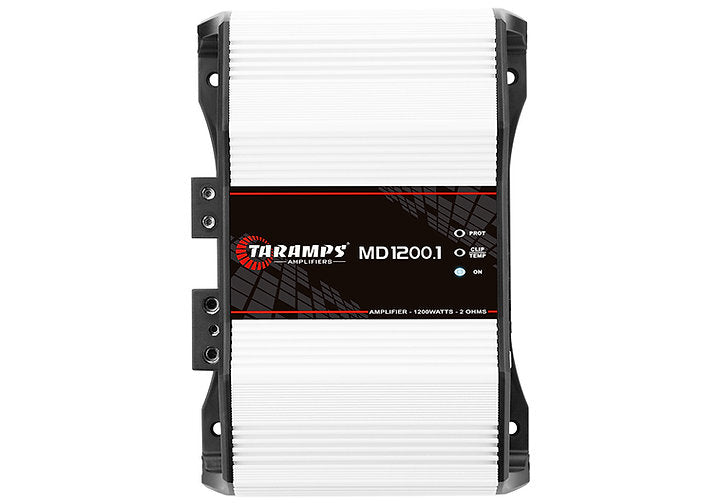

Taramps MD 1200.1 Car Audio Amplifier 1 Channel 8000 Watts RMS Car Audio Amplifier 2 ohm

Product description

Taramps Amplifier Module Class D (1 Channel 1.200 Watts RMS)

"The Taramps MD 1200.1 in the 2-ohms version has been carefully designed with the highest technology, offering high efficiency and performance for various car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1200W RMS
@ 12.6 VDC - 4 OHMS: 800W RMS
INPUT SENSITIVITY 220mV
SIGNAL TO NOISE RATIO >88dB
FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8») Vari‡vel
CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8») Vari‡vel
BASS BOOST 0 ~ 10,5dB (50Hz)
THERMAL MANAGEMENT Smart Cooler (Cooler acionado por temperatura ou ‡udio em 3 velocidades
EFFICIENCY 80%
INPUT IMPEDANCE 10K OHMS
OUTPUT IMPEDANCE 2 OHMS
PROTECTION SYSTEM Curto na sa’da / Tens‹o de alimenta�‹o baixa e alta / Prote�‹o tŽrmica
MIN. SUPPLY VOLTAGE 9 VDC
MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
CONSUMPTION AT REST 1,8 A
MAXIMUM MUSIC CONSUMPTION 60 A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 119 A
DIMENSIONS (WXHXD) 8.98"" x 2.76"" x 6.22""
WEIGHT 3.96 lbs (1,80Kg)
EAN 7898556844604
"
