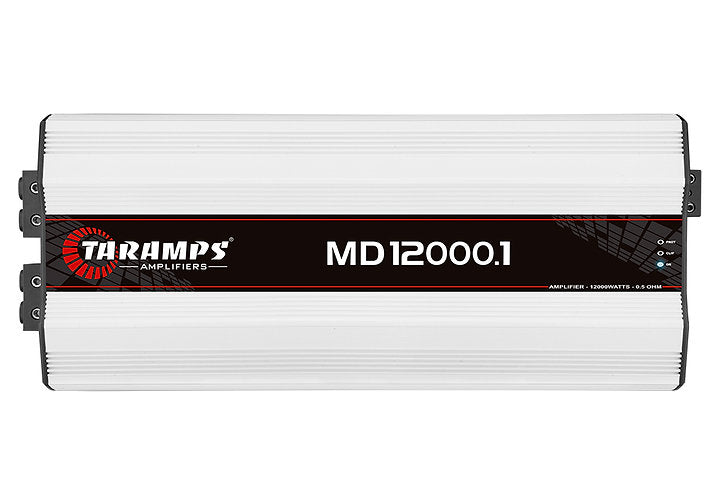

Taramps MD 12000.1 Car Audio Amplifier 1 Channel 12000 Watts RMS Car Audio Amplifier 0.5 Ohm

Taramps Amplifier Module Class D (1 Channel 12.000 Watts RMS)

"Taramps presents the amplifier module MD 12000.1 in the 0.5 ohm version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 12000 Watts RMS. Welcome to the sound world of Taramps.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 0.5 OHM: 12000W RMS
@ 12.6 VDC - 1 OHM: 7200W RMS
INPUT SENSITIVITY 220mV
SIGNAL TO NOISE RATIO >95dB
FREQUENCY RESPONSE 10 Hz ~5 kHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10 Hz ~90 Hz (-12dB/8th) Variable
CROSSOVER LOW PASS (LPF) 90 Hz ~5 kHz (-12dB/8th) Variable
BASS BOOST Freq.: 35 Hz ~55 Hz
Boost: 0 ~10dB
EFFICIENCY 79%
INPUT IMPEDANCE 15K ohms
OUTPUT IMPEDANCE 0.5 ohm
PROTECTION SYSTEM Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 3.6A
MAXIMUM MUSIC CONSUMPTION 602.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 1205A
DIMENSIONS (WXHXD) 8.98"" x 2.75"" x 21.65"" (228 x 70 x 550mm)
WEIGHT 17.52 lbs (7.95 kg)
EAN 7898556845113"
