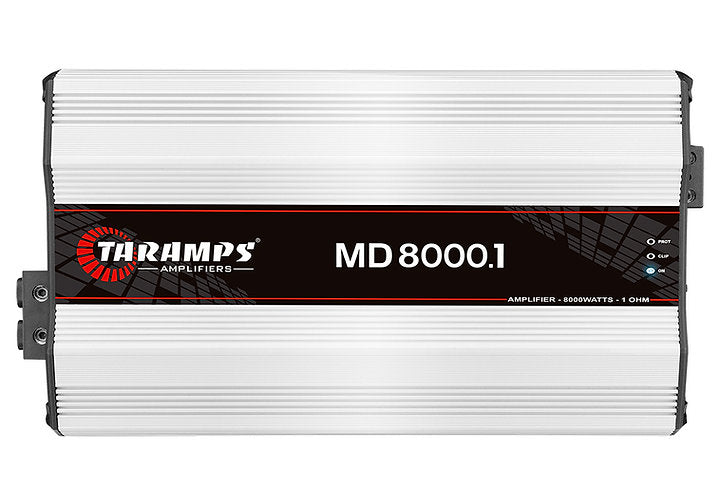

Taramps MD 8000.1 Car Audio Amplifier 1 Channel 8000 Watts RMS Car Audio Amplifier 1 ohm

Taramps Amplifier Module Class D (1 Channel 8.000 Watts RMS)

"The Taramps MD 8000.1 in the 1-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE (10Hz ~10 KHz (-3dB) module. It is classified as mono and has a channel with a maximum power of 8000-Watts RMS. Welcome to Taramps audio world.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 1 OHM: 8000W RMS
@ 12.6 VDC - 2 OHMS: 5120W RMS
INPUT SENSITIVITY 220mV
SIGNAL TO NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz(-12/8») Variable
CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8») Variable
BASS BOOST Freq: 35Hz to 55Hz
Boost: 0 ~ 10dB (50Hz)
EFFICIENCY 85%
INPUT IMPEDANCE 22K Ohms
OUTPUT IMPEDANCE 1 Ohm
PROTECTION SYSTEM Short-Circuit to Output, short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 2A
MAXIMUM MUSIC CONSUMPTION 373.40A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 746.90A
DIMENSIONS (WXHXD) 8.98"" x 2.76"" x 16.50"" (228 x 70 x 419mm)
WEIGHT 13.42lb (6,10kg)
EAN 7898556844468"
