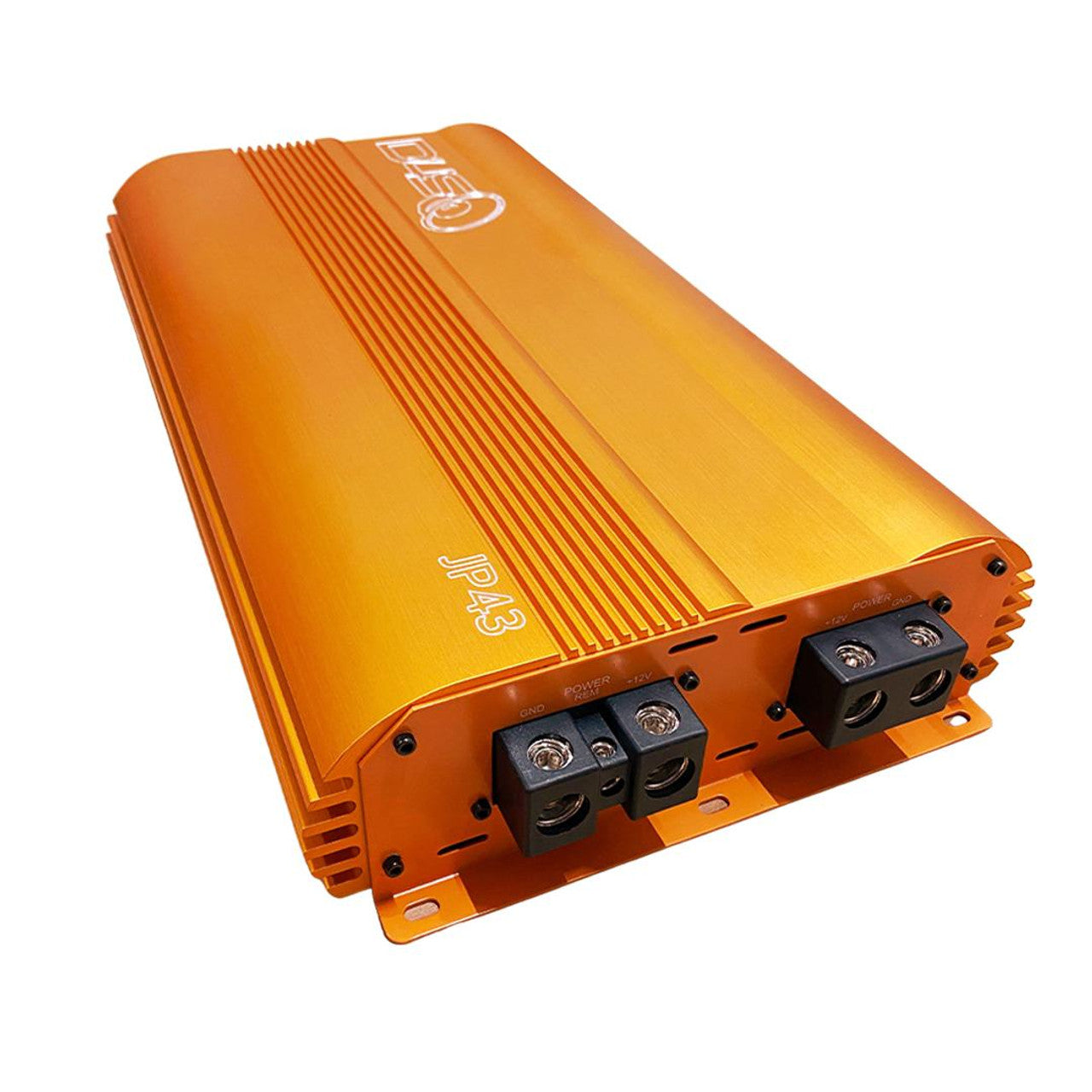

JP 43 Amplifier: 4300W PLUS RMS MONOBLOCK Amplifier | Cream Orange

Experience the epitome of powerful sound amplification with the JP-43, a monoblock amplifier that stands as a titan in the realm of big bass and big power. With a powerful 4300 WATT RMS, the JP-43 creates amazing bass that is clean and clear.

Key Highlights:

• Power Ratings: Tested at 14.4V @ 1% THD
  • 1-ohm rating: 4300 WATTS RMS
  • 2-ohm rating: 2300 WATTS RMS
  • 4-ohm rating: 1300 WATTS RMS
• Color: Cream Orange
• Enhanced Features: Equipped with 2 power and 2 ground inputs, all accepting up to 0 gauge wire size, paired with superior Tiffany RCAs, and a continuous internal fan operation for enhanced cooling.

Essential Requirements:

• Electrical Upgrade: A mandatory electrical upgrade is required for the warranty to be valid.
• Supportive Components: BIG 3, upgraded alternator, and reserve battery(s) are essential to support this amplifier’s operation.

Detailed Specifications:

• Power and Ground Inputs: 2 power and 2 ground terminals, accommodating 0 gauge wire.
• Speaker Output: Accepts up to 4 gauge wire.
• Frequency Response: 14Hz – 260Hz
• Signal to Noise: 89dB
• Damping Factor: 400 <
• Efficiency at 4 ohm: 94%
• Input Sensitivity: 6V – 0.2V
• Filters and Phase:
  • Subsonic Filter: 10Hz – 50Hz
  • Low Pass Filter: 35Hz – 250Hz
  • Phase: 0 – 180 degrees
• Fusing: 400A TOTAL | 200A each positive input (x2)
• Dimensions: 15.75" L x 9.37" W x 2.64" H
• Origin: MADE IN SOUTH KOREA

Advanced Control:

• Patent Pensding BT Remote Control: Equipped with voltage and temperature display, and a clipping indicator.
• Power Requirements for Remote: C type power connection required; external battery pack or USB power necessary as the unit does not have rechargeable batteries.
• Strappable: The amplifier is linkable, allowing for the harnessing of double the power of another JP 43.
