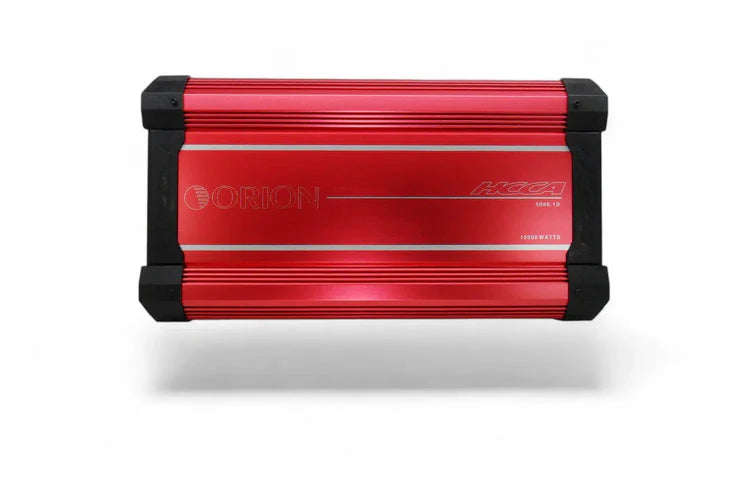

ORION HCCA5000.1DSPLX HCCA Series 5000W RMS 1-Channel Class-D Amplifier

The HCCA5000.1DSPLX Class D Amplifier is a powerhouse built for serious car audio enthusiasts and SPL (Sound Pressure Level) competitors. Delivering a jaw-dropping 5,000 watts RMS at 1 ohm, this amp pushes your subwoofers to their maximum potential, producing earth-shaking bass and complete control. Engineered with cutting-edge Class D technology, the HCCA5000.1DSPLX ensures maximum efficiency, allowing for high output without generating excessive heat.

Designed in the iconic HCCA Red, this amplifier not only performs but looks stunning in any audio setup. Built tough, it features advanced protection circuits to prevent overheating, short circuits, and overloads, guaranteeing reliable performance during the most demanding sessions. Its design makes installation straightforward while delivering the superior power needed for competition-level sound.

Whether you’re aiming for top SPL competition results or just want unmatched sound quality in your vehicle, the HCCA5000.1DSPLX Class D Amplifier offers the ultimate in performance, durability, and style.

FEATURES

- Frequency Response: 15Hz - 250Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 500A recommended (not included)
- Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520x302x80mm)
