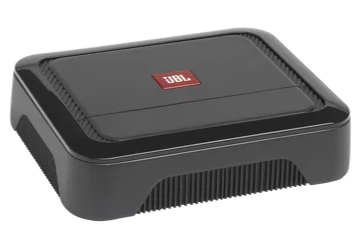

JBL - Club 600W Class D Digital Mono Amplifier with Variable Low-Pass Crossover - Black

Club A600

High performance car amplifier

Product Description

Value engineered car amplifier with JBL power and performance

New high performance JBL Club amplifiers deliver world class JBL power from a compact chassis built to fit in more vehicles, even when space is tight. Available in 4 channel, 5 channel and mono models. Club amps feature variable crossovers and bass boost for precise control and tuning, plus high and low level inputs that let them integrate with most car stereos. An included wired remote bass level control for Mono and 5 channel that can be mounted for convenient volume adjustment from driver seat.

General Specifications

350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)

Class D amp technology

variable low-pass filter (32-320 Hz, 12 dB/octave)

variable bass boost (0-12 dB at 45Hz)

phase switch (0, 180 degrees)

preamp and speaker-level inputs

fuse rating 30A x 2

8-gauge power and ground leads recommended Ñ wiring and hardware not included with amplifier

WxHxD=220mm x 51.3mm x 180mm WxHxD=8-11/16Ó x 2-1/16" x7-1/8Ó

600w RMS / 1200W MAX

What's in the box?

1 x Club A600 mono subwoofer car amplifier

4 x 30A ATO fuses (2 installed, 2 spare)

2 x Bare wire-to-RCA adapters

1 x Remote bass control module

1 x 16.5' Remote control cable (RJ-25 plugs on both ends)

2 x Self-tapping screws for remote (M3 x 15mm)

4 x Mounting screws (M4 x 53mm)

2 x JBL stickers

1 x Owner's manual
