LC2i, 2 channel line out converter with accubass

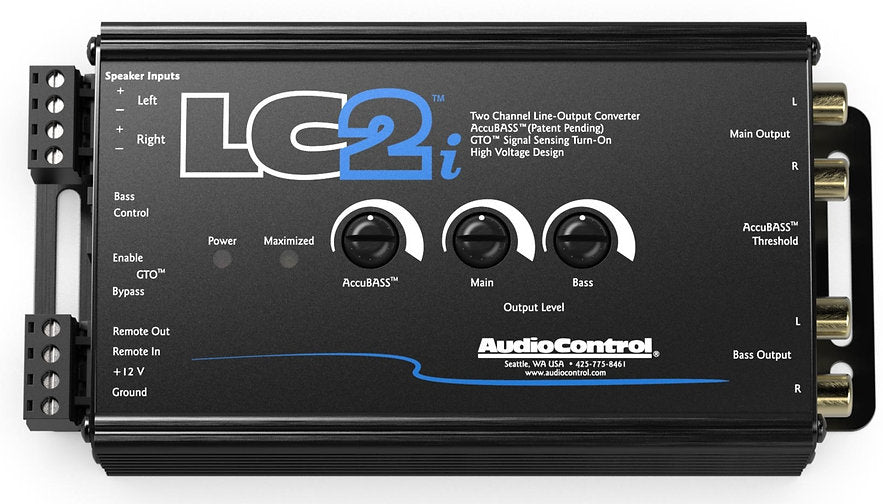

"The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

features

Two channels of Active speaker level inputs Ð Accept 400 watt signals per channel
Fixed and variable outputs with discrete level controls
AccuBASS¨ processing for correction of bass roll-off
GTOTM Signal Sensing
Input For Optional Remote Level Control
Compact design
specifications

inputs

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 400W per channel at 4½
Input Impedance: 20k½
outputs

Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150½
performance

Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 33 Hz Ð 100 kHz ±1 dB
control

Remote In
12VDC Remote Out (always active when unit is on)
general

Current Draw: 150mA
Recommended Fuse Rating: 1A
weights & dimensions

Dimensions: 5.4_L x 3.25_D x 1.5_H (6.5_L including mounting brackets)
Weight: 1.0lbs (0.5kg)
in the box: LC2i, Speaker and Power connectors, Manual, Warranty"
