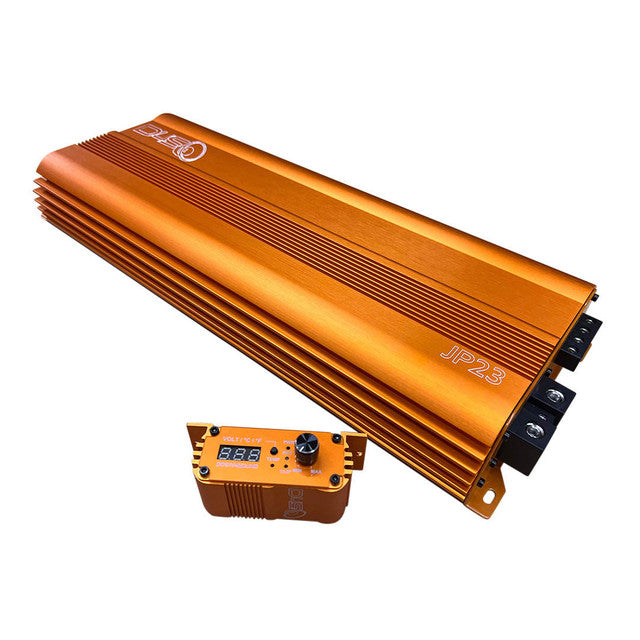

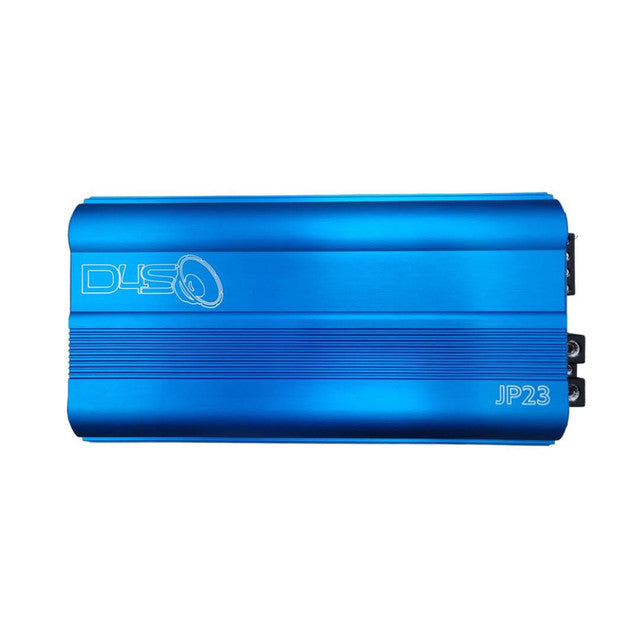

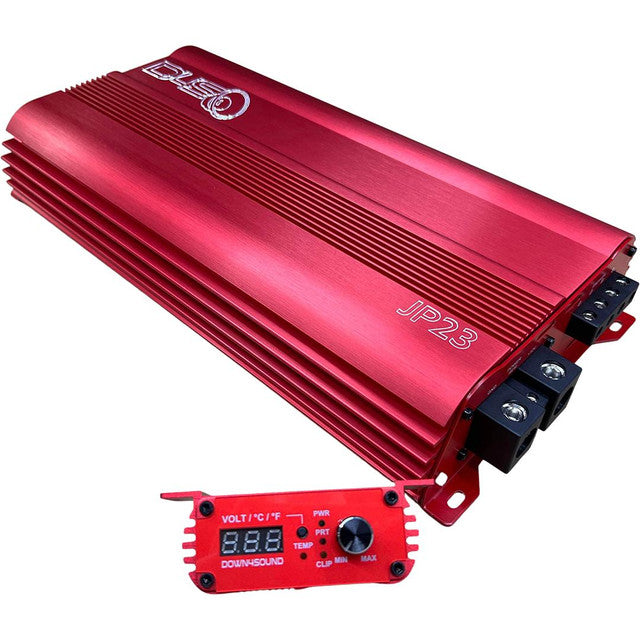

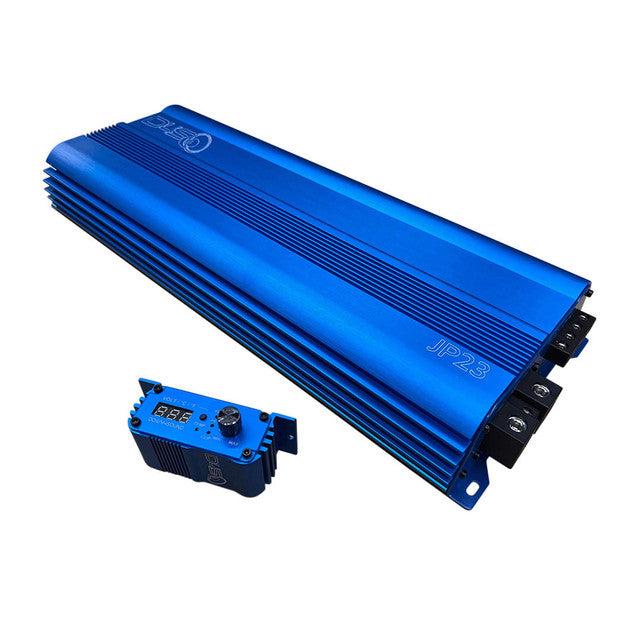

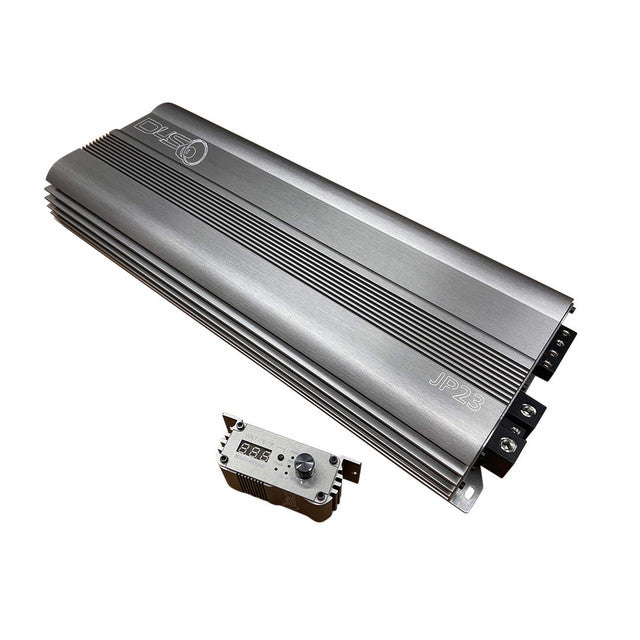

Down4Sound JP23 | 2300W RMS Amplifier

The Down4Sound JP23 is a high-performance car audio amplifier designed for enthusiasts seeking powerful, clean output. Delivering 2,300 W RMS, this amplifier is ideal for driving subwoofers or multiple speaker setups with precision and clarity. Its compact design, reliable protection circuits, and efficient thermal management make it suitable for both competitive SPL systems and high-quality custom car audio installations.

Key Benefits

• 2,300 W RMS output for strong and dynamic bass performance.
• Compact design for flexible installation in vehicles with limited space.
• Advanced protection: thermal, overcurrent, and short-circuit safeguards.
• Efficient cooling system ensures reliable performance under high power loads.
• High-quality input and speaker terminals provide secure and clean connections.
• Compatible with a range of subwoofers and full-range audio systems.
• LED indicators for power, protect, and clipping status.
• Ideal for SPL competitions, custom builds, or high-output car audio systems.

Technical Specifications

• Weight: 15.43 lb (approximate, based on 7 kg)
• Dimensions: 17.32″ L × 9.84″ W × 3.94″ H
• Power Handling:
• RMS at 4 Ω: 1,200 W
• RMS at 2 Ω: 2,300 W
• Peak: 2,800 W (approx.)
• Impedance: 2 Ω – 4 Ω stable
• Frequency Response: 20 Hz – 200 Hz
• Total Harmonic Distortion (THD): < 0.1%
• Signal-to-Noise Ratio (SNR): > 95 dB
• Input Sensitivity: 0.2 V – 6 V
• Crossover: Adjustable low-pass and subsonic filters
• Power Terminals: Dual 1/0 GA for power and ground, 4 GA speaker outputs
• Cooling: Internal fan-assisted thermal management
• LED Indicators: Power, Protect, Clip

Installation & Compatibility

The JP23 requires a robust electrical system with 1/0 GA power and ground wiring and a high-amp fuse for safe operation. It is optimized for 2 Ω or 4 Ω subwoofer configurations and integrates easily with aftermarket or factory audio systems. Proper ventilation is recommended to maintain thermal stability during extended high-power use, making it ideal for SPL and custom installations.

FAQS

• What can a 2300-watt amp power in a car audio system?
  A 2300W amp can run powerful subwoofers or multiple mids and highs depending on its channel layout. It offers strong volume, clean bass, and enough headroom for high-performance sound setups.
• Is a 2300W amplifier good for daily driving?
  Yes, it delivers strong output with low distortion when installed correctly. Users benefit from fuller bass, cleaner dynamics, and improved clarity without needing competition-level equipment.
• What should I check before installing a 2300W amp?
  Confirm wiring gauge, grounding quality, and electrical support. Proper installation ensures consistent performance and prevents overheating, voltage drop, or stress on your audio components.
• How does a 2300W amp compare to lower-wattage models?
  It offers more headroom, better bass control, and louder output. Higher wattage amps also tend to run cleaner at moderate volume, providing stronger overall performance for most systems.
