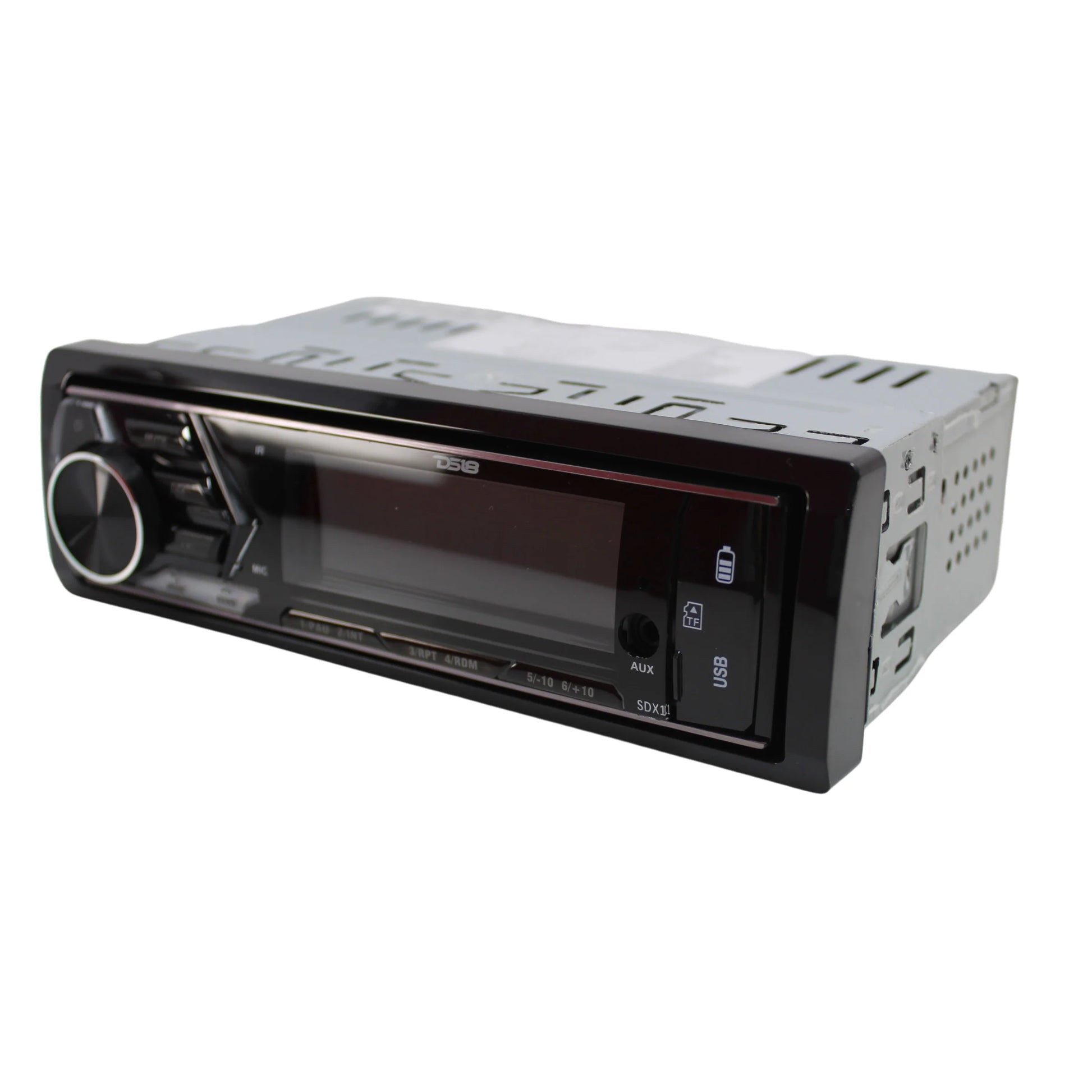

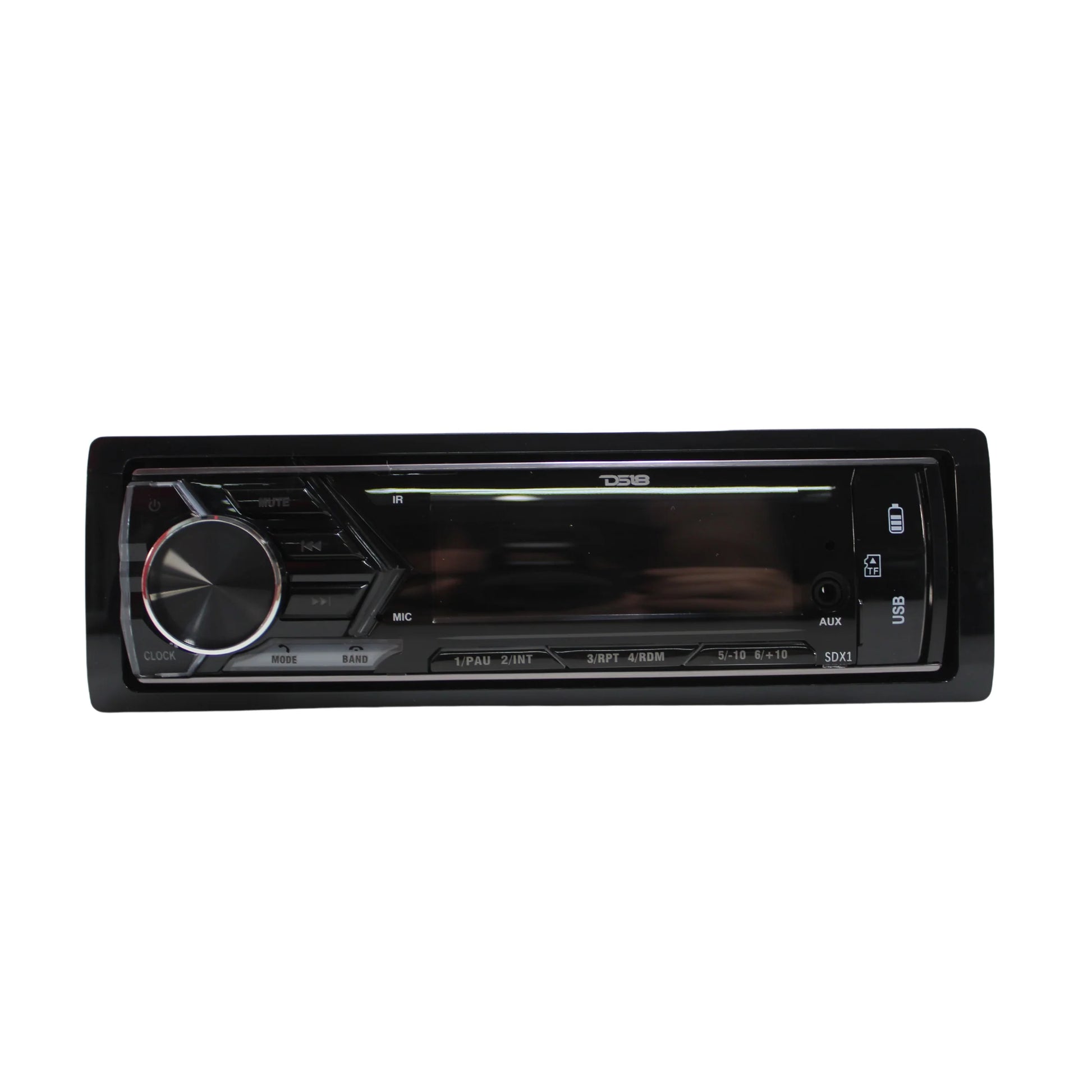

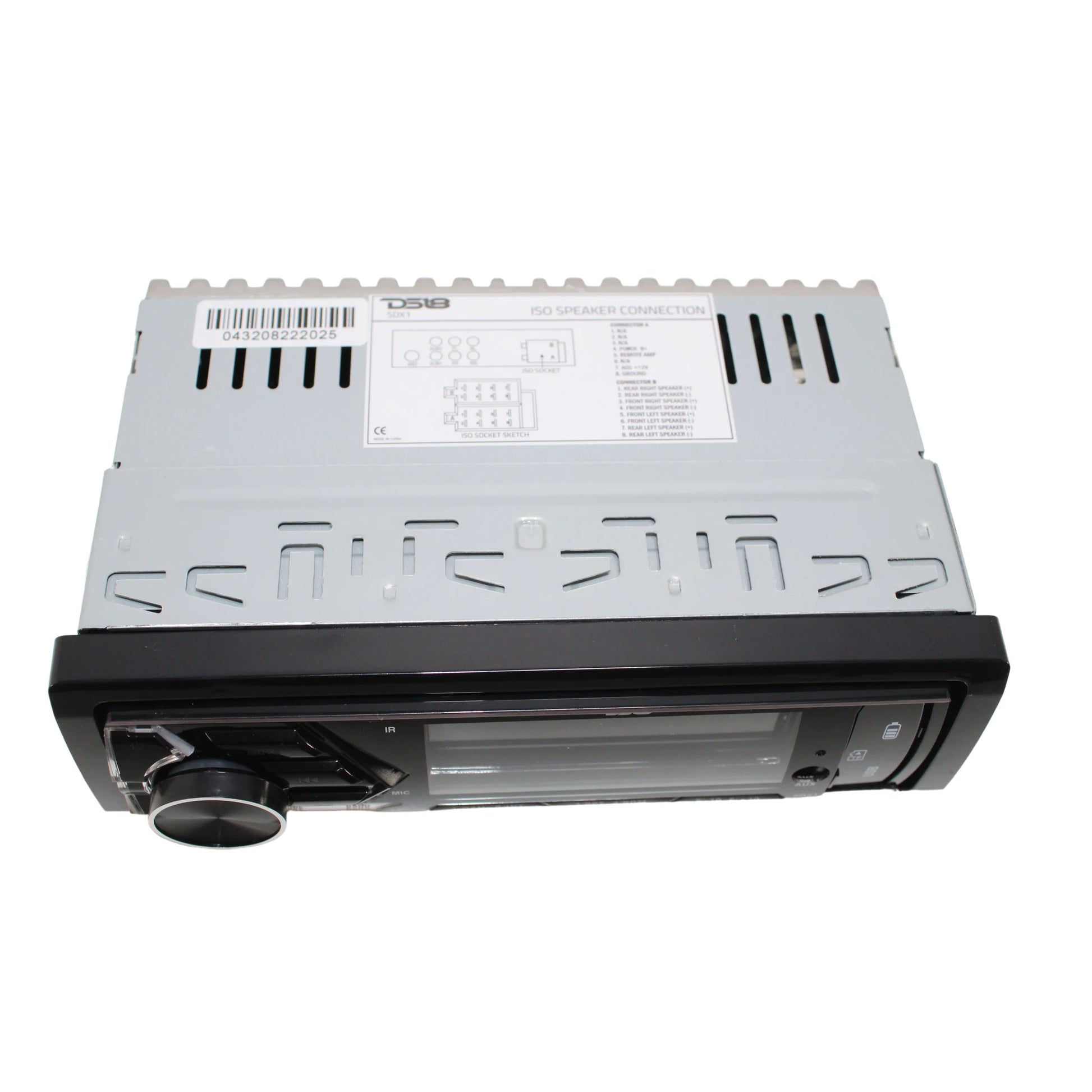

The DS18 SDX1 Single-DIN Digital Media Receiver is a mech-less head unit designed to provide premium connectivity and signal control for car audio systems. Featuring Bluetooth audio streaming, dual USB ports, SD card support and high-volt RCA pre-outs (7 V), it gives you the tools to upgrade your system with precision. Ideal for users seeking better clarity, stronger signal control, and seamless integration into OEM or after market setups.

Key Benefits

• Delivers up to 50 W × 4 channels max output, with high-volt 7 V RCA pre-outs to feed amplifiers with strong clean signal.
• Bluetooth v4.1 streaming and hands-free calling functionality built in for modern connectivity.
• Dual front USB ports (one for audio, one for charging), plus SD card reader supporting up to 64 GB of media files.
• RGB backlit buttons with 7 selectable colors and 3″ VA LCD display for better customization and visibility.
• Mech-less design (no CD/DVD) for sleek installation in modern car builds, leaving space for other components.

Technical Specifications

• RMS: 17 W × 4 @ 4 Ω (14.4 V)
• Max: 50 W × 4 @ 4 Ω (14.4 V)
• Size: Single-DIN chassis (178 mm × 50 mm × 150 mm)
• Impedance: Standard 4 Ω speaker outputs (built-in amp)
• Preamp Output: 7 V RCA front/rear/subwoofer outputs
• USB/SD Support: Up to 64 GB drives, formats MP3, WMA, FLAC, MAV
• Bluetooth: Version 4.1, A2DP v1.2 Sink
• Frequency Response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio: >60 dB

Compatibility & Installation

Designed for 12 V automotive systems, this receiver pairs effectively with factory or aftermarket amplifiers; for best results, feed its 7 V pre-outs into an amp capable of clean input signals and proper wiring (4 AWG or better).

FAQS

• Does the DS18 single din fit most standard dashboards?
  Yes, single din units are compatible with many vehicles, but checking your dash size is always recommended.
• Does the DS18 single din include Bluetooth and modern features?
  Yes, most DS18 models come with Bluetooth, USB, and other convenient options.
• Is installing a DS18 single din difficult?
  Installation is usually simple, but wiring harnesses or dash kits might be needed depending on your car.
• Do you ship DS18 single din head units nationwide?
  Yes, we ship all DS18 single din units across the U.S.
