The Deaf Bonce Apocalypse DB-3012R D1 12″ subwoofer is engineered for intense bass performance in high-powered car audio systems. With dual 1 Ω voice-coils and a massive 5600 W peak rating, this driver combines robust construction, high excursion (Xmax ~19 mm) and serious thermal handling to deliver deep, controlled low frequencies. Ideal for SPL builds or premium daily setups where bass impact and durability matter.

Key Benefits

• Peak output of 5600 W — capable of high-impact bass performance.
• RMS rating 2800 W ensures stable power handling over extended use.
• Dual 1 Ω (1+1 Ω) configuration gives wiring flexibility and supports high-current mono amp setups.
• Large 3.00″ voice coil increases heat capacity and excursion ability (Xmax ~19 mm) for deeper lows.
• Heavy-duty aluminum frame and reinforced paper cone provide durability and high output reliability.
• Suitable for sealed, ported or band-pass enclosures allowing flexibility in design and tone.

Technical Specifications

• RMS: 2800 W
• Max Power: 5600 W peak
• Size: 12″
• Impedance: Dual 1+1 Ω (also model has 2+2 Ω variant)
• Xmax: 19 mm one-way
• Voice Coil: 3.00″ diameter
• Sensitivity (SPL): ~86.5 dB
• Frequency Response: Fs ~ 33.8 Hz; Qts ~0.43
• Construction: Aluminum frame, paper cone, foam surround, ferrite magnet
• Cut-out diam.: approx. 11.18″ (284 mm); Mounting depth: approx. 8.82″ (224 mm)
• Recommended For: High-output SPL subwoofer systems, custom installations needing powerful bass.

Compatibility & Installation

Designed for 12 V automotive systems. For optimal performance, pair with a mono amplifier capable of delivering ~2500-3000 W RMS or more into a 1 Ω load, and ensure your enclosure is correctly designed (sealed, ported or band-pass) with proper wiring and power support.

FAQS

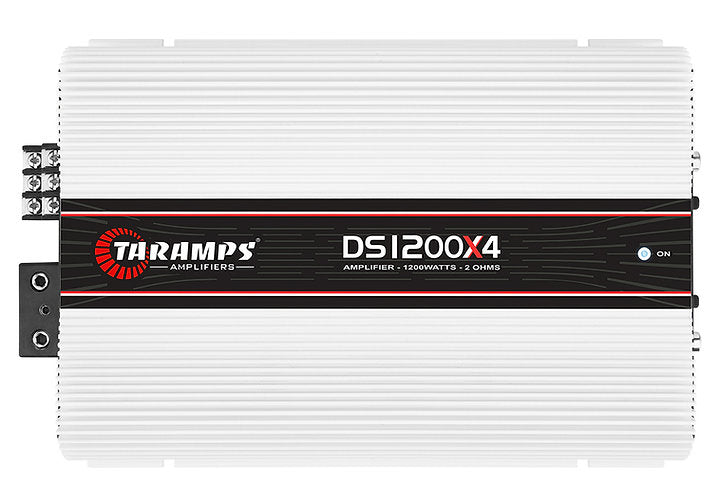

• What can you power with a Taramps DS 1200x4?
  Door speakers, mids, bullet tweeters—basically a full front-stage with plenty of volume.
• Is the DS 1200x4 reliable for daily use?
  Very. It’s known for staying stable and handling long listening sessions with no problem.
• Does the DS 1200x4 need a big electrical upgrade?
  Not usually. Good wiring and a healthy battery are enough for most builds.
• Is the DS 1200x4 amp easy to tune?
  Yes. The controls are simple, making it beginner-friendly.
