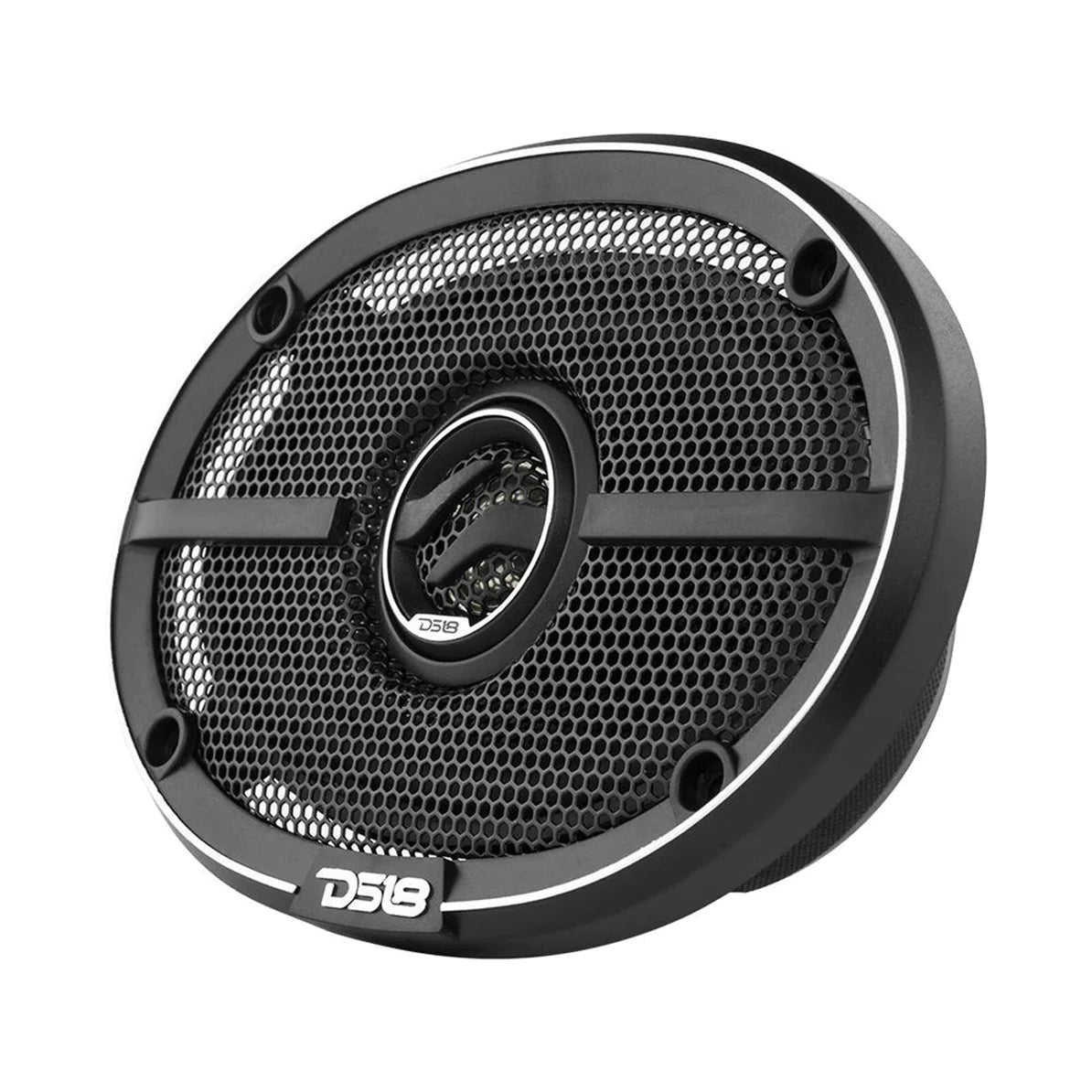

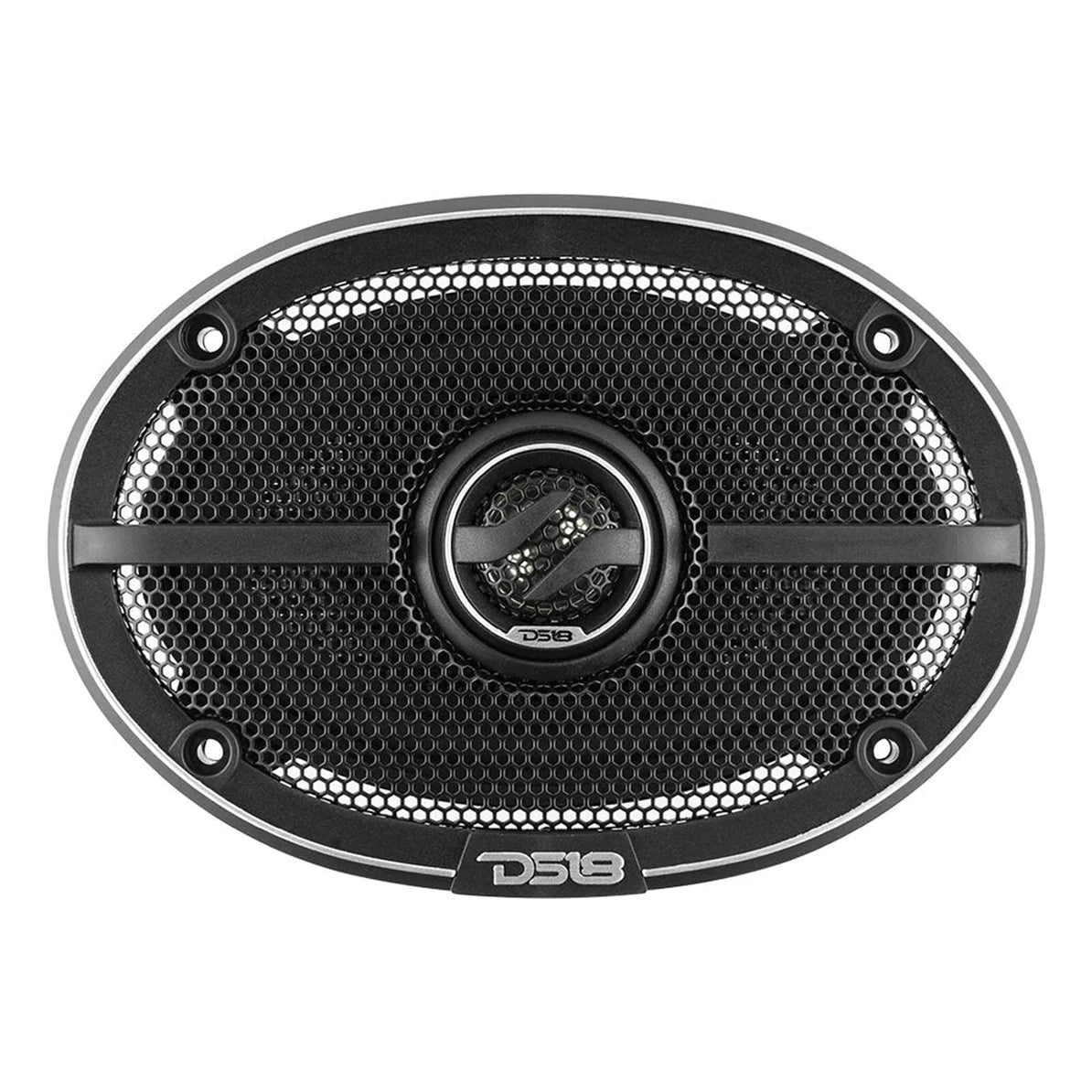

DS18 ZXI-464 4x6" 2-Way Coaxial Speakers with Kevlar Cone 180 Watts 4-Ohm
SKU: ZXI-464
Precio regular
$79.95
Precio de venta
$79.95
Precio regular
$95.94
DS18 ZXI-464 4x6" 2-Way Coaxial Speakers with Kevlar Cone 180 Watts 4-Ohm
Product description
Shipping & Return
Product reviews
Pair DS18 ELITE 4"x6" 180 Watts 4-Ohm 2-Way Coaxial Speakers with Kevlar Cone
This DS18 ZXI series is the go to line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 44 is 4 inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember. Grills included.
This Listing Includes:
(1) Pair DS18 4"x6" Coaxial Speakers
(1) Pair Speaker Grills
FEATURES:
-4"x6" 2 - way 4 ohm speaker that gives amazing sound from low to extremely high volume.
-2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember
SPECIFICATIONS:
Nominal Diameter: 4"x6"
Nominal Impedance: 4 ohm
RMS Power Handling: 60 Watts
MAX Power Handling: 180 Watts
Sensitivity (1w/1m): 87dB
Frequency Response: 80Hz-20KHz
Recommended HI Pass Crossover: 100Hz
MOTOR SPECIFICATIONS:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 10.9 oz / 310g
TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 oz / 8.5g
THIELE & SMALL PARAMETERS:
Equivalent Volume: 1.989L
Excursion (one way): 2.3mm
Free Air Resonance: 77Hz
Mechanical Factor: 5.97
Electrical Factor: 1.15
Total Factor: 0.97
Mechanical Mass: 9.79g
Mechanical Compliance: 232mm/N
BL Factor: 4.44
Voice Coil Inductance: 216mH
Cone Area: 77.7cm2
DC Resistance: 3.5 ohm
Mechanical Mass w/o air : 9g
MEASUREMENTS:
Overall Diameter: 3.82x5.94"
Overall Depth: 2.80" / 71mm
Front Mount Baffle Cutout: 3.46x5.51" / 87.8x140mm
Mounting Depth: 2.05" / 52mm
Motor Diameter: 3.31" / 84mm
This DS18 ZXI series is the go to line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 44 is 4 inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember. Grills included.
This Listing Includes:
(1) Pair DS18 4"x6" Coaxial Speakers
(1) Pair Speaker Grills
FEATURES:
-4"x6" 2 - way 4 ohm speaker that gives amazing sound from low to extremely high volume.
-2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember
SPECIFICATIONS:
Nominal Diameter: 4"x6"
Nominal Impedance: 4 ohm
RMS Power Handling: 60 Watts
MAX Power Handling: 180 Watts
Sensitivity (1w/1m): 87dB
Frequency Response: 80Hz-20KHz
Recommended HI Pass Crossover: 100Hz
MOTOR SPECIFICATIONS:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 10.9 oz / 310g
TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 oz / 8.5g
THIELE & SMALL PARAMETERS:
Equivalent Volume: 1.989L
Excursion (one way): 2.3mm
Free Air Resonance: 77Hz
Mechanical Factor: 5.97
Electrical Factor: 1.15
Total Factor: 0.97
Mechanical Mass: 9.79g
Mechanical Compliance: 232mm/N
BL Factor: 4.44
Voice Coil Inductance: 216mH
Cone Area: 77.7cm2
DC Resistance: 3.5 ohm
Mechanical Mass w/o air : 9g
MEASUREMENTS:
Overall Diameter: 3.82x5.94"
Overall Depth: 2.80" / 71mm
Front Mount Baffle Cutout: 3.46x5.51" / 87.8x140mm
Mounting Depth: 2.05" / 52mm
Motor Diameter: 3.31" / 84mm
