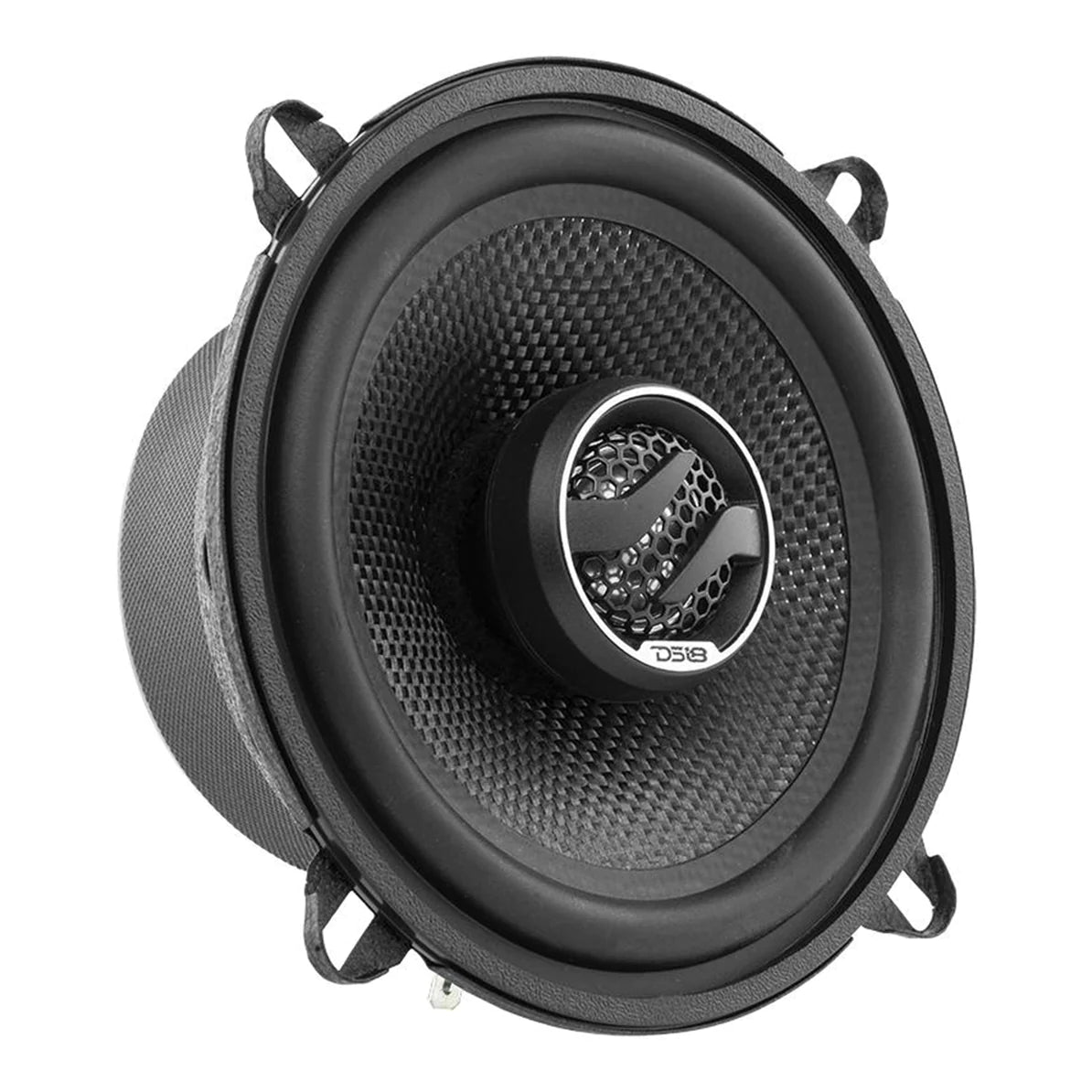

DS18 ZXI-5254 ZXI 5.25" 2-Way Coaxial Speakers with Kevlar Cone 180 Watts 4-Ohm

DS18 ELITE 5.25" Coaxial Speakers 180W 4 Ohm 2-Way Pair /w Kevlar Cone ZXI-5254

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 5254 is a 5.25" inch, 4 ohm coaxial speaker designed for audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

This Listing Includes:

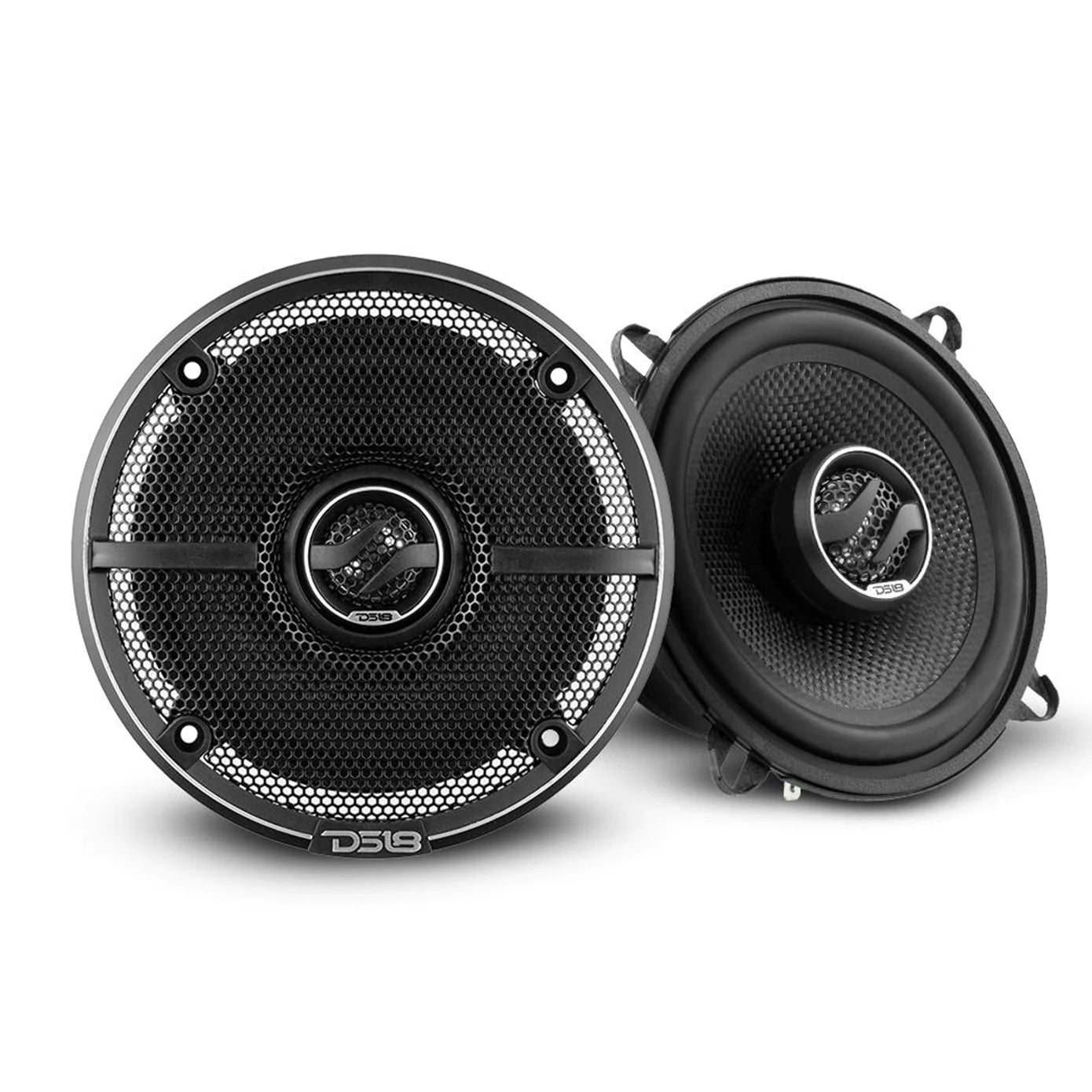

(2) DS18 5.25" Coaxial Speakers ZXI-5254

Features:
- High Power handling of 180 Watts for loud listening.
- Small 5.25" size for limitless audio applications.
- 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.

SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 5.25" (129mm)
Nominal Impedance: 4 Ohm
RMS Power Handling: 60 Watts
MAX Power Handling: 180 Watts
Sensitivity (1w/1m): 89dB
Frequency Response: 40Hz-20Khz
Recommended HI Pass Crossover: 60Hz
Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:
Voice Coil Diameter: 1" (25.5mm)
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 10.9 Oz / 310g

TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:
Equivalent Volume: 4.86L
Excursion (one way): 2.3mm
Free Air Resonance: 77Hz
Mechanical Factor: 8.39
Electrical Factor: 0.87
Total Factor: 0.79
Mechanical Mass: 9.93g
Mechanical Compliance: 457mm/N
BL Factor: 4.321
Cone Area: 86.5cm
DC Resistance: 3.5 Ohm
Mechanical Mass w/o air: 9.0g

MEASUREMENTS:
Overall Diameter: 5.08" (129mm)
Overall Depth: 2.80" (71mm)
Front Mount Baffle Cutout: 4.45" (113mm)
Mounting Depth: 2.28" (58mm)
Motor Diameter: 3.31" (84mm)
