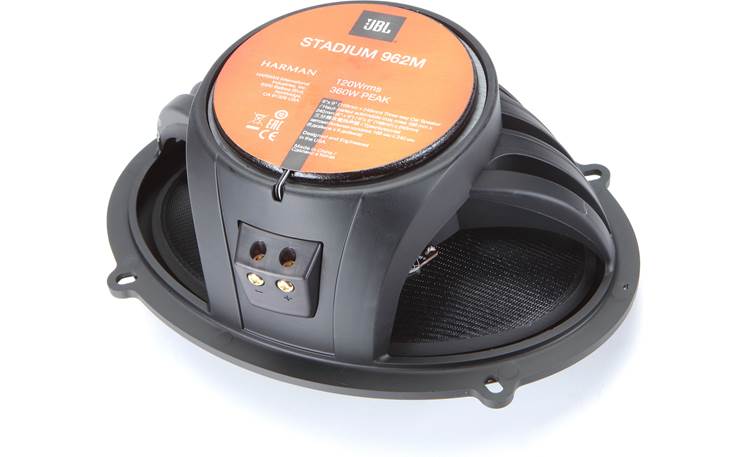

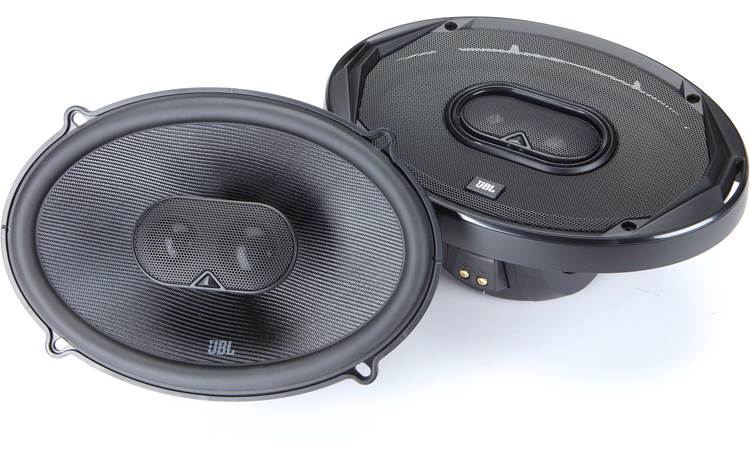

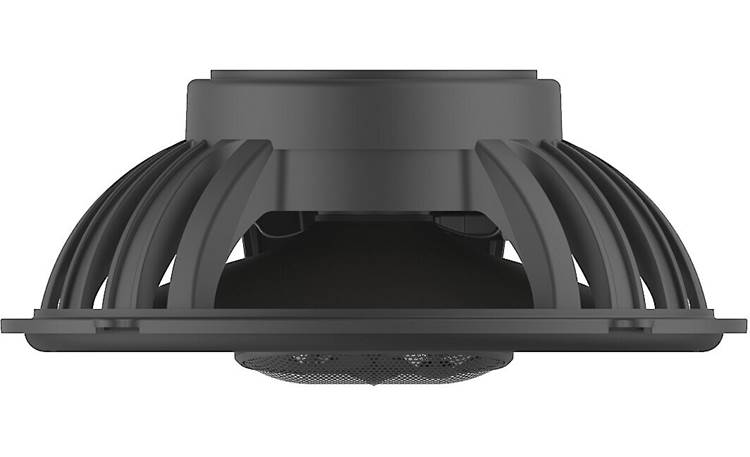

The JBL Stadium 962M is a 6″ × 9″, 3‑way car speaker from JBL’s Stadium Series, engineered to deliver premium audio performance with high efficiency, clarity, and power handling. Designed for both SPL and sound-quality systems, it features JBL’s Plus One™ glass fiber woofer, an aluminum midrange driver, and a high-frequency dome tweeter that reaches up to 40 kHz.

Key Benefits

• High-Resolution Tweeter: 3/4″ edge-driven aluminum dome tweeter delivers crisp highs and expands frequency range up to 40 kHz.
• Plus One™ Glass Fiber Woofer: Lighter and stiffer than typical cones for strong, deep output.
• Tweeter Level Control: Toggle button on the tweeter lets you switch between 0 dB or –3 dB to match installation and tuning.
• UniPivot Tweeter: Angled tweeter can be rotated (270°) after installation for optimal sound staging.
• 3‑Way Upgradability: Compatible with JBL’s 2″ or 3″ midrange for building a full 3-way component system.
• Slim Crossover Design: Compact crossover – simple to install in tight spaces.

Technical Specifications

• Power Handling: 120 W RMS, 360 W peak
• Sensitivity: 94 dB @ 2.83 V
• Frequency Response: 35 Hz – 40 kHz
• Impedance: 3.0 Ω
• Physical Dimensions & Weight
• Mounting (Top Depth): 3‑5/32″ (~3.16″)
• Cutout Dimensions: 9-15/32″ × 6-21/32″
• Gross Weight (per pair): ~11.05 lb (package)
• Converted Dimensions (L × W × H): 9.45″L × 6.63″W × 3.16″H (using Crutchfield frame & depth specs)

Installation & Compatibility

These speakers are ideal for full-range upgrades or replacing factory 6×9s with a high-efficiency, high-output option.

Use the tweeter level switch (0 dB / –3 dB) to tune out brightness depending on your mounting location.

They work well with moderate to high-powered amplifiers; ensure proper wiring to match the 3 Ω impedance.

Because of the relatively shallow mounting depth (3.16″), they can fit many car door or rear deck locations, but always check clearance.

FAQS

• What makes the JBL Stadium 962M stand out from standard 6x9 speakers?
  These speakers offer higher power handling, advanced materials, and clearer mids and highs than traditional 6x9s.
• Do JBL Stadium 962M speakers require an amplifier?
  They can run on a head unit, but amplification significantly improves volume, clarity, and output.
• Are the JBL Stadium 962M good for bass response?
  Yes, they deliver strong mid-bass performance, enhancing low-end impact without needing a subwoofer in smaller systems.
• Can the JBL Stadium 962M replace factory speakers without modification?
  In most vehicles, yes—but always confirm mounting depth and cutout size for proper fitment.
