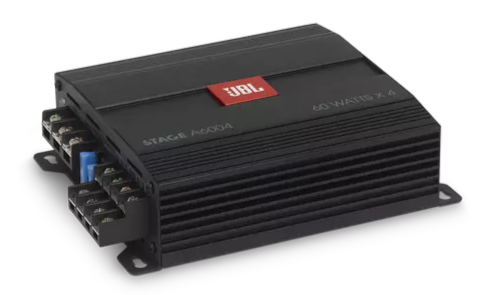

JBL Stage Amplifier A6004

Class D Car Audio Amplifier

Product Description

POWER YOU WILL FEEL AT YOUR CORE

JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwooers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable and once they turn on, they'll make a transducer sit up and sing.

General Specifications

Power Output60Wx4@4ohms

Frequency Response20-20kHz±1dB

THD@ROP1%

Input Sensitivity0.2V-5V

High Pass Filter, Variable32 -320Hz

Low Pass Filter, Variable32 -320Hz

Bass EQ@45Hz0-12dB

ProtectionDC, OVP, UVP, OCP, OTP

What's in the box?

1 x Amplifier

1 x Spare fuse (x2 for 1-channel and 4-channel model)

1 x High-level input cable (x2 for 4-channel model).

2 x Two-color JBL brand stickers

1 x Quick start guide
