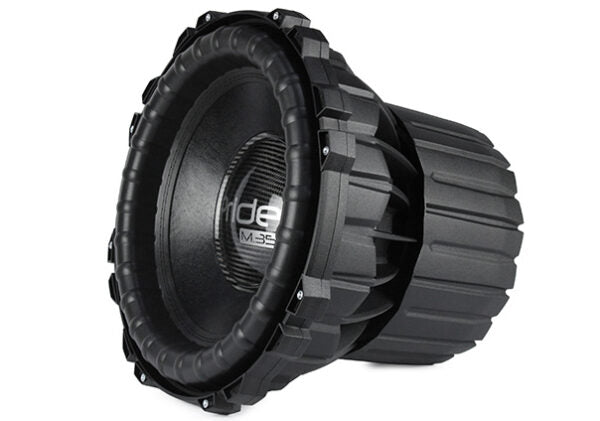

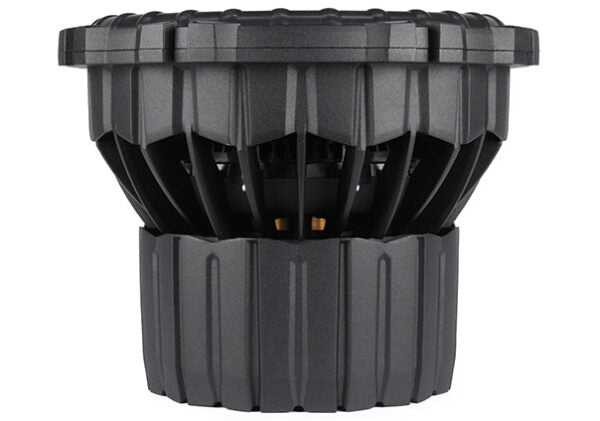

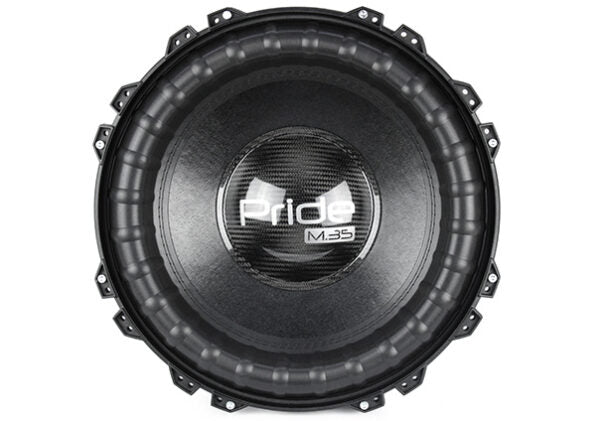

Subwoofer M.35 15 D 0.75
SKU: 4670089722801
Precio regular
$1,390.00
Precio de venta
$1,390.00
Precio regular
$1,668.00
Subwoofer M.35 15 D 0.75
Product description
Shipping & Return
Product reviews
New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.
The subwoofer has an honest RMS – 3500 watts, as well as even better efficiency than previous models.
| General feature | |
|---|---|
| Power Handling (RMS) | 3500 W |
| VC diameter / material | 3,6" Flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 240*26mm x 3 pcs / 9,45*1,02" x 3 pcs |
| Spider diameter and q-ty | 250mm x 6pcs / 9,84" x 6pcs |
| Cone material | Paper reinforced glass fiber |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 0,75+0,75 Ω |
| Free Air Resonance (Fs) Hz | 26,9 |
| Moving Mass (Mms) g | 428 |
| BL Tm | 18,1 |
| Total Speaker “Q” (Qts) | 0,268 |
| Electrical Q (Qes) | 0,288 |
| Mechanical Q (Qms) | 3,78 |
| Equivalent Compliance (Vas) L | 84,2 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 35 |
| Sensitivity (1 W / 1 m) dB | 89,6 |
| Sensitivity (2,83 V / 1 m) dB | 97,7 |
| Effective Piston Area (Sd) cm² | 835 |
| Physical Specifications | |
| Overall Diameter | 397mm / 15,63" |
| Mounting Hole Diameter | 365mm / 14,37" |
| Mounting Depth | 275mm / 10,83" |
| Driver Displacement | 8 l / 2,11 Gal |
| Net Weight | 38,5 kg / 84,88 lbs |
