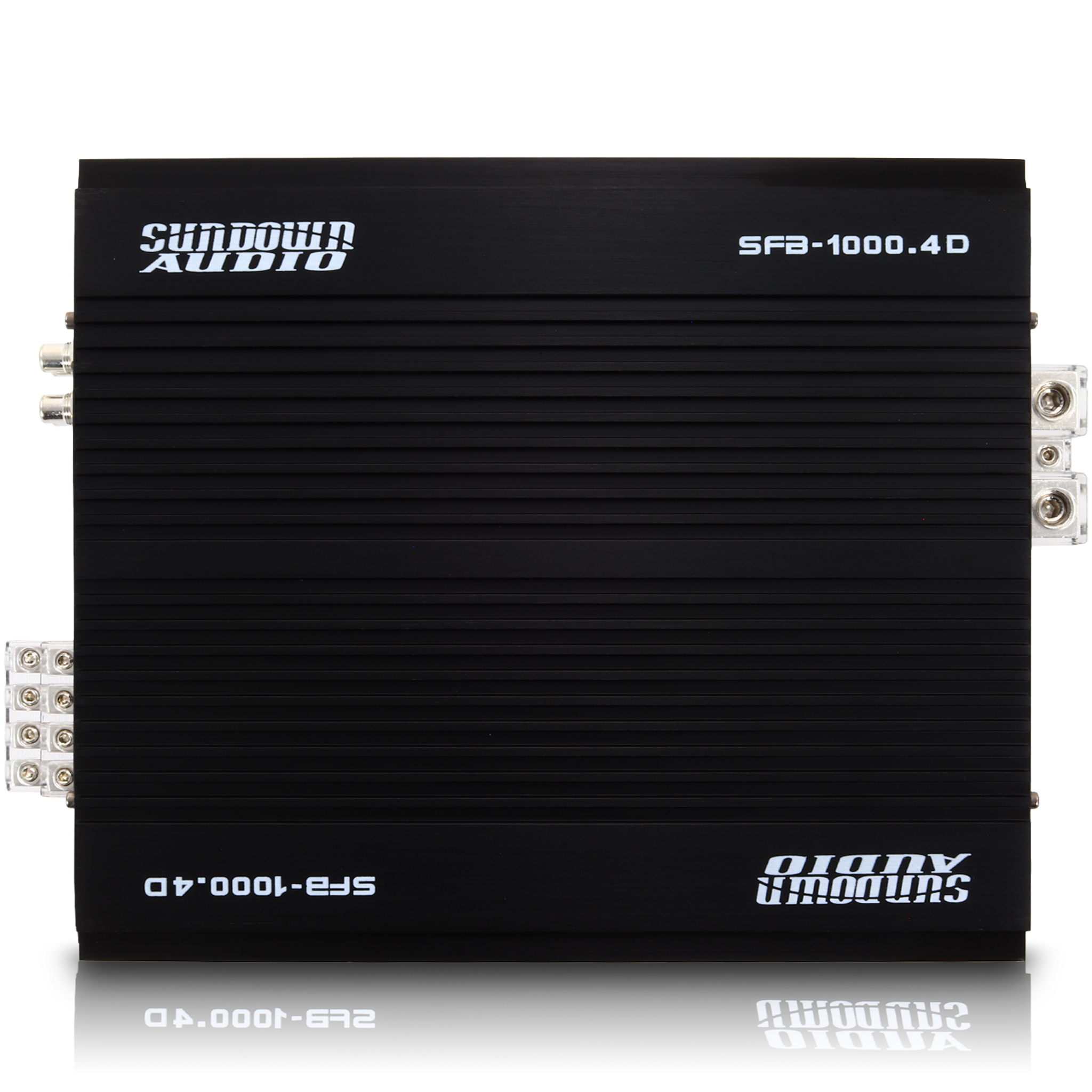

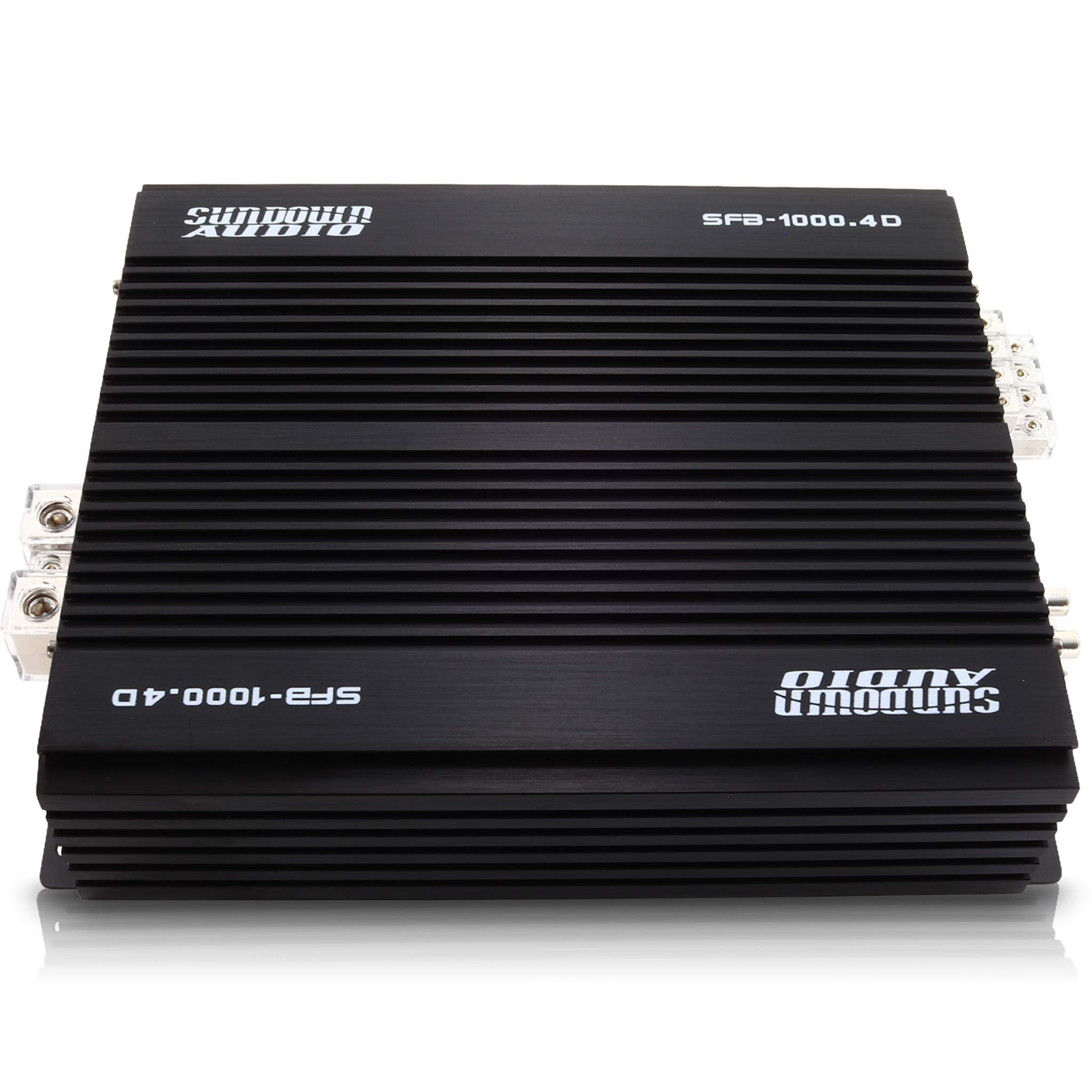

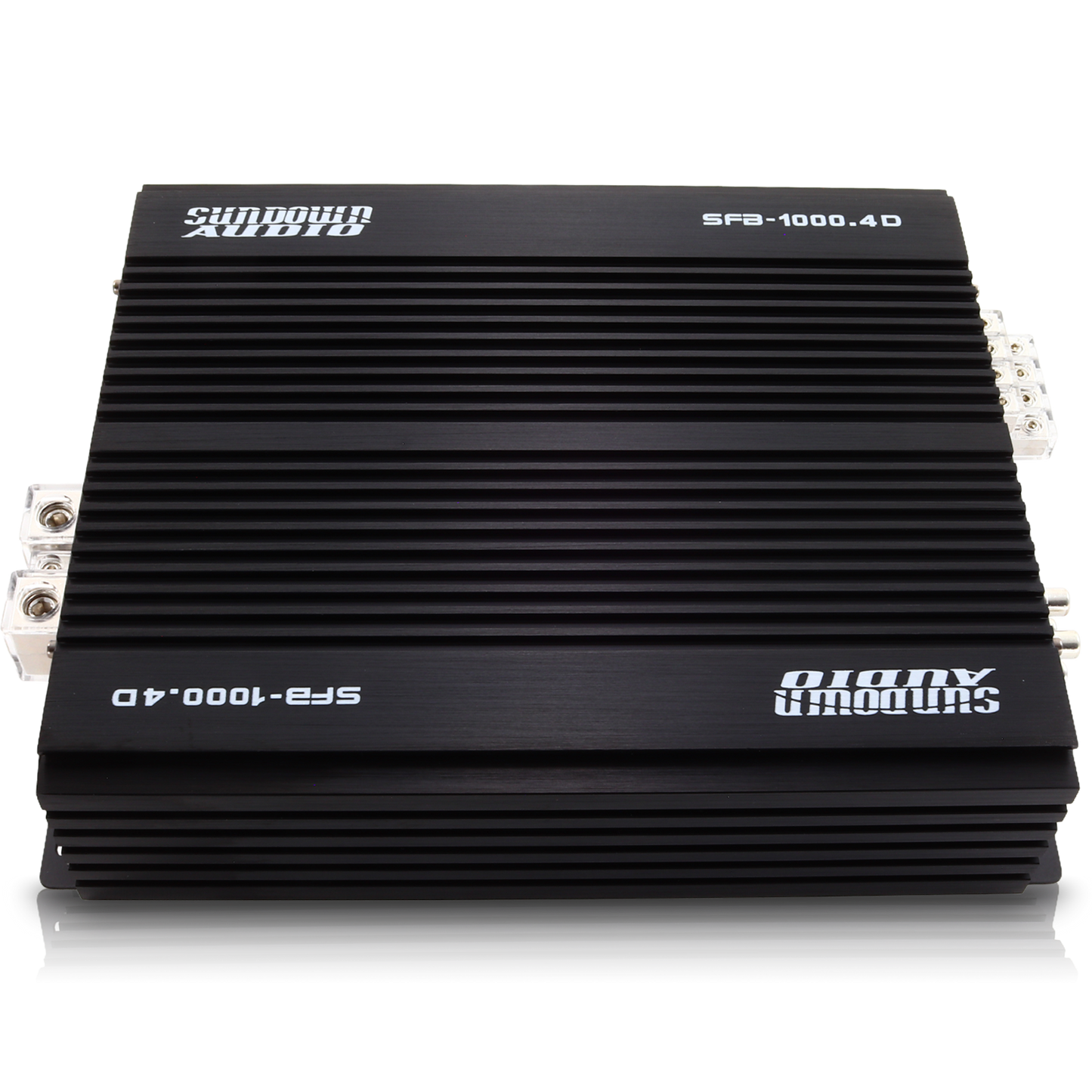

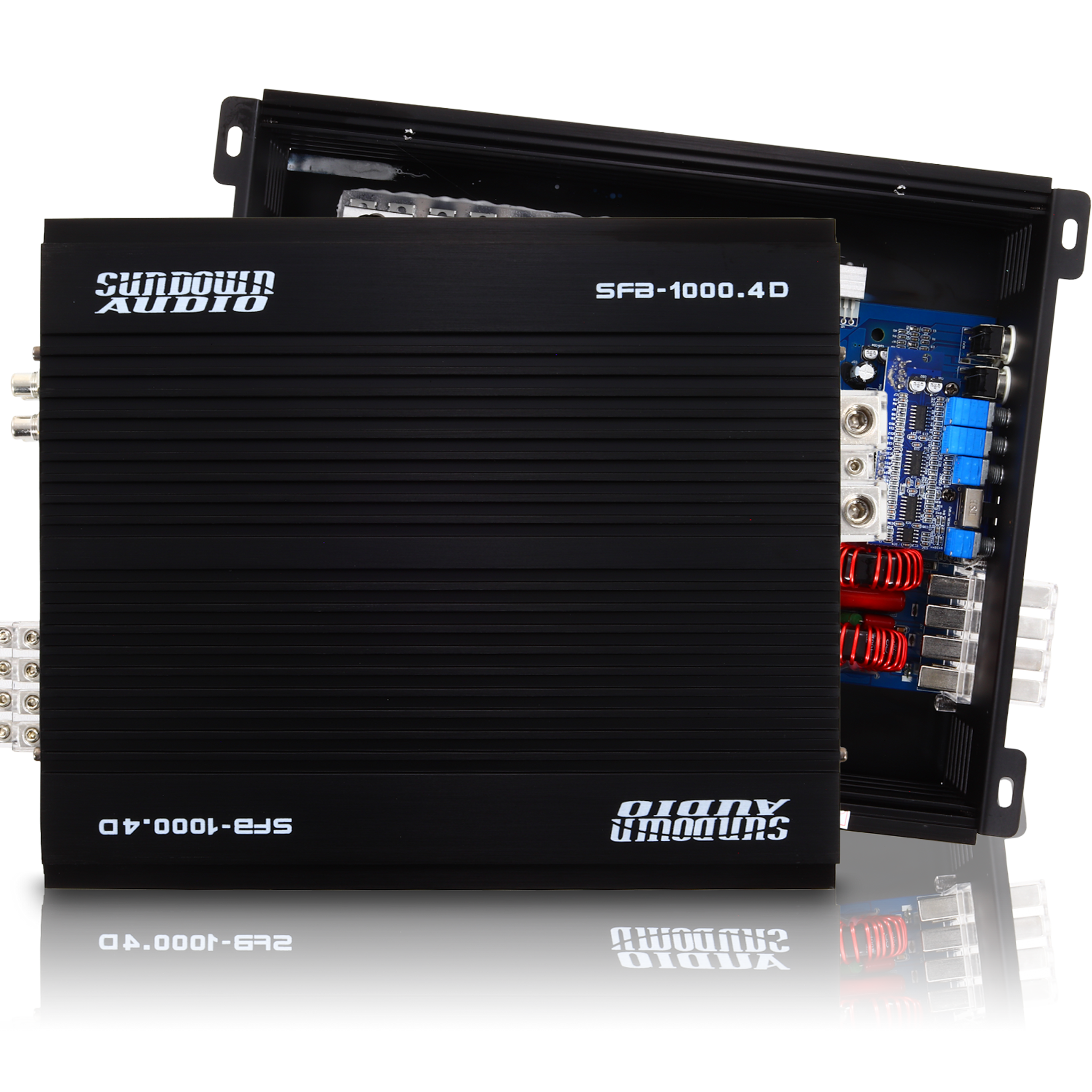

Sundown Audio - SFB-1000.4D Amplifier

• Features

  • High Efficiency Digital Multi-Channel Design
  • 12 dB/Octave – Variable Low Pass Filter
  • 12 dB/Octave – Variable High Pass Filter
  • Variable Bass Boost
  • Clipping Indicator
  • 4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)
  • Optional Wired Remote Control with Clipping Indicator

• Specifications

  • Number Of Channels: 4
  • 350 watts x 4 @ 4 ohm, 14.4v
  • 590 watts x 4 @ 2 ohm, 14.4v
  • 1050 watts x 4 @ 1 ohm, 14.4v
  • Input Sensitivity: 200MV
  • Signal To Noise Ratio: 100dB
  • Frequency Response: 10HZ-20KHZ(-3dB)
  • High Pass Filter: 15Hz to 6KHz Variable
  • Low Pass Filter: 50Hz to 6KHz Variable
  • Bass Boost: 0 to 12dB(50Hz)
  • Smart Cooler (fan powered by temperature or audio)
  • Input Impedance: 56k ohms
  • Proctection System: Output Short/High/Low Supply Voltage/Thermal Protection
  • Minimum Supply Voltage: 9VDC
  • Maximum Supply Voltage: 16VDC
