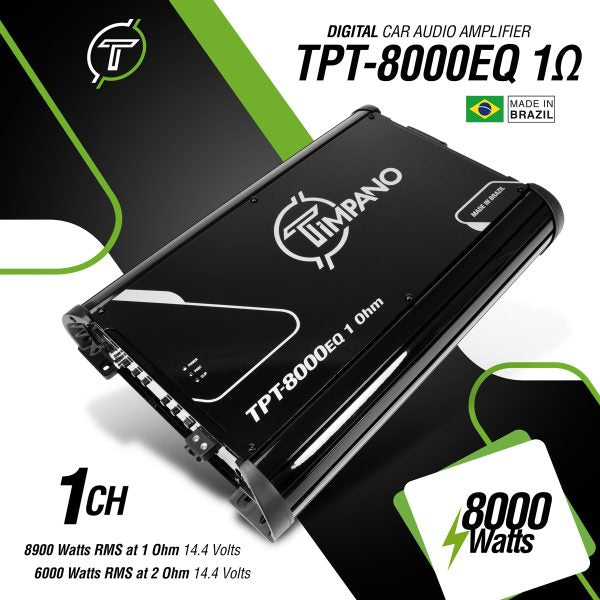

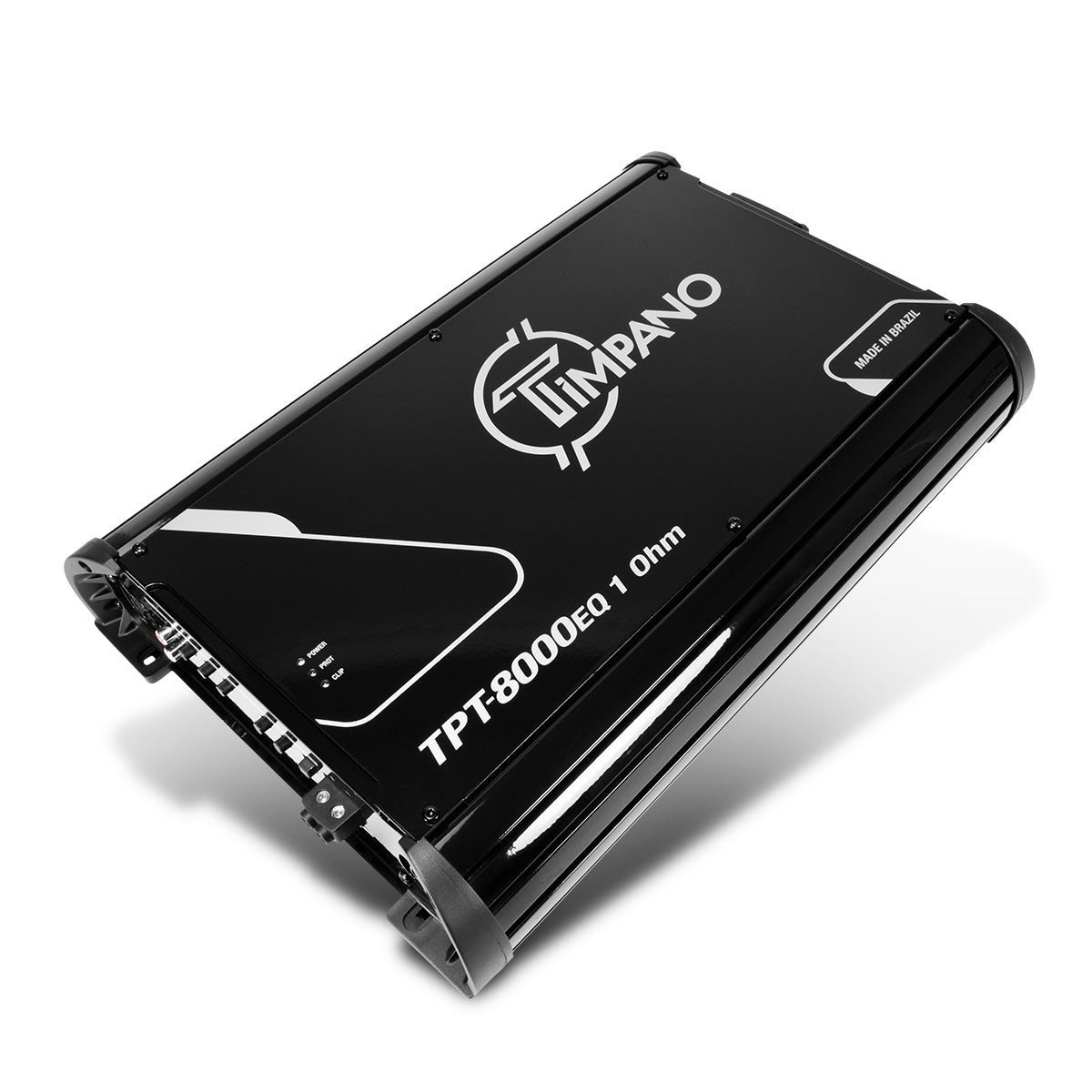

Timpano 1 Channel TPT-8000EQ 1 Ohm Car Audio Amplifier
SKU: 611056238837
Timpano 1 Channel TPT-8000EQ 1 Ohm Car Audio Amplifier
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:
Number of Channels: 1
RMS Power at 1 Ohm 12.6V: 8000W RMS
RMS Power at 2 Ohm 12.6V: 5100W RMS
RMS Power at 4 Ohm 12.6V: 3030W RMS
RMS Power at 1 Ohm 14.4V: 8900W RMS
RMS Power at 2 Ohm 14.4V: 6000W RMS
RMS Power at 4 Ohm 14.4V: 4000W RMS
Supply Voltage: 9.5 ~ 15V
Frequency Response: 10Hz ~ 15KHz
Crossover Low Pass: 50Hz ~ 15KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2V
Input Impedance: 25K Ohm
Impedance Output: 1 Ohm
Consumption with Signal Musical: 5.2A ~ 396A
Consumption with Signal Bass: 5.2A ~ 790A
Dimensions (L x W x H): 11.57” x 17.51” x 3”
Weight: 13.9 Lbs
Features:
The TPT-8000EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Fullrange frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.
Use the guide Below for recommended applications, where you can get the full potential of your amplifier.
