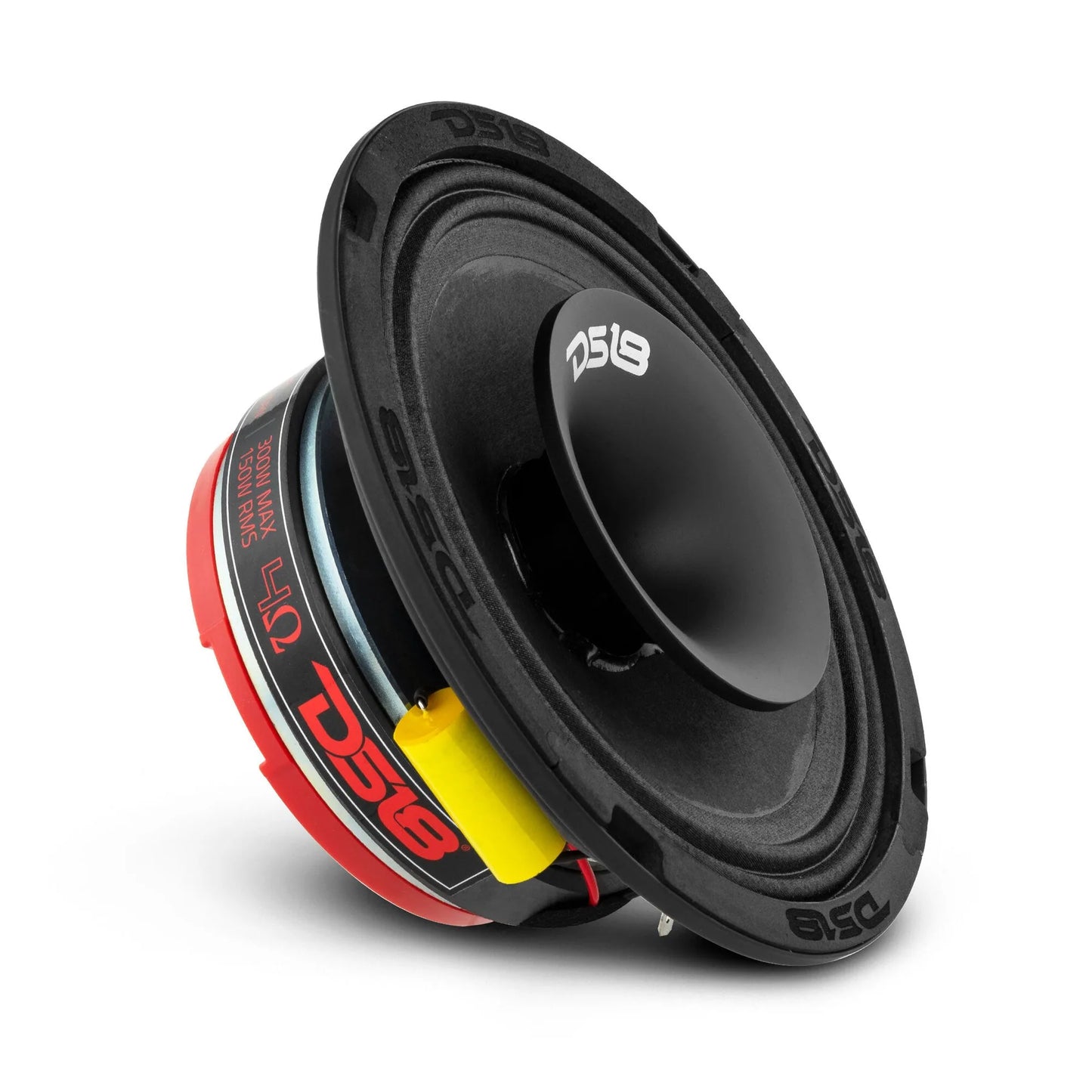

DS18 PRO-HY6.4MSL PRO 6.5" Shallow Hybrid Mid-Range Loudspeaker with Built-in Driver 300 Watts 4-Ohm - Grill Included

The DS18 PRO-HY6.4MSL is a compact, shallow-mount 6.5″ hybrid mid-range loudspeaker that combines a paper-cone woofer with a built-in 1″ titanium compression driver. Engineered for pro-level loudness with precision, it handles up to 300 W peak while maintaining a profile slim enough for tight installations. The inclusion of both ferrite and neodymium magnets ensures a strong motor structure that delivers consistent, powerful sound. This unit comes with a protective grill and is ideal for car audio systems where space is limited, yet high fidelity and volume are required.

Key Benefits

• High Peak Power: 300 W maximum handling gives headroom for loud, dynamic playback.
• Efficient RMS Power: 150 W RMS allows for solid, consistent performance without risking damage.
• Wide Frequency Response: Covers 100 Hz to 20 kHz, giving both clear midrange and high-frequency extension via the built-in driver.
• Shallow Mount Depth: With a mounting depth of only 2.77″ (70.5 mm), it's ideal for vehicles with limited space.
• Balanced Sensitivity: 93 dB (1 W / 1 m) makes it efficient enough to work well with a variety of amplifiers.
• High-Pass Recommended: Use a 140 Hz high-pass crossover to protect the speaker and optimize performance.
• Durable Design: The woofer utilizes a paper cone with a cloth surround, while the 1″ driver uses a titanium diaphragm and a 3″ horn for projection.
• Magnet Structure: Includes both ferrite (woofer) and neodymium (driver) magnets for strength and responsiveness.
• Repair Friendly: Designed to be repairable using the PRO-HY/VC replacement diaphragm.
• Grill Included: Comes with a protective grill to help in rugged or exposed installations.

Technical Specifications

• Nominal Diameter: 6.5″ / 165.1 mm
• Impedance: 4 Ω
• RMS Power Handling: 150 W
• Peak Power Handling: 300 W
• Sensitivity (1 W / 1 m): 93 dB
• Frequency Response: 100 Hz – 20 kHz
• Recommended High-Pass Crossover: 140 Hz
• Number of Ways: 2 (woofer + driver)
• Woofer Specifications
• Voice Coil Diameter: 1.5″ / 38.6 mm
• Voice Coil Former Material: KSV
• Winding Material: CCAW
• Cone Material: Paper
• Surround Material: Cloth
• Basket Material: Steel (gloss red finish)
• Magnet Material: Ferrite
• Magnet Weight: 17.5 oz
• Driver Specifications
• Voice Coil Diameter: 1″ / 25.4 mm
• Voice Coil Former: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Horn Diameter: 3″ / 76.2 mm
• Physical Dimensions & Weight
• Overall Diameter: 6.92″ (176 mm)
• Overall Depth: 3.52″ (89.5 mm)
• Mounting Depth: 2.77″ (70.5 mm)
• Cutout Diameter: 5.6″ (142 mm)

Installation & Compatibility

The PRO-HY6.4MSL is designed for high-efficiency mid-range performance and fits well in tight spaces, thanks to its shallow profile. Ideal for use in car doors, dashboards, or custom pods, it’s also well-suited for PA-style or pro audio applications. Because of its high sensitivity and efficient design, it's compatible with both aftermarket amplifiers and factory head units (with appropriate crossover settings). Use a high-pass filter of around 140 Hz to protect the speaker and maximize clarity. Mount in a location with stable support, and secure the included grill to protect the diaphragm and horn.

FAQS

• What is the advantage of the DS18 Hybrid 6.5 design?
  The hybrid structure blends midrange punch with extended high-frequency clarity, making it a versatile choice for full-range sound.
• Does the DS18 Hybrid 6.5 require an amplifier?
  Yes, these speakers perform best when powered by an aftermarket amplifier that provides clean, stable wattage.
• Are DS18 Hybrid 6.5 speakers suitable for door installations?
  Absolutely—most users install them in vehicle doors to maximize midrange loudness and full-range performance.
• Can DS18 Hybrid 6.5 speakers keep up with high-powered subwoofers?
  Yes, their strong output and high sensitivity allow them to blend smoothly with powerful bass systems.
