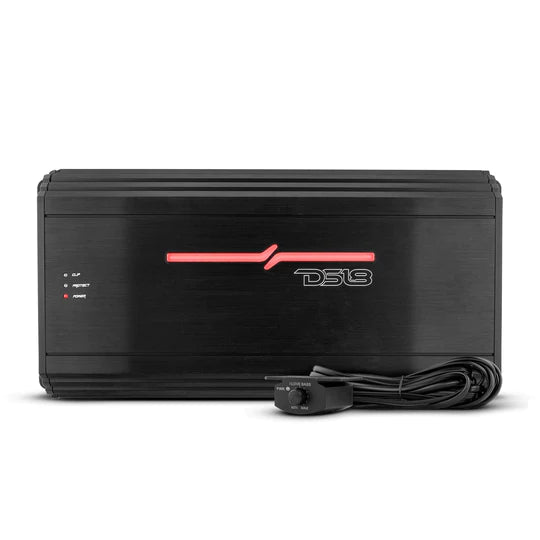

DS18 ZR1500.1D Class D 1-Channel Monoblock Amplifier 1500 Watts RMS- 1 Ohm

The DS18 ZR1500.1D Class D 1-Channel Monoblock Amplifier is engineered to deliver high-efficiency, high-current power for demanding subwoofer systems. Rated at 1500 W RMS at 1 ohm, this compact monoblock amplifier uses Class D topology to provide strong low-frequency control while maintaining reduced heat and electrical strain. Built for enthusiasts and professional installers, it features a robust power supply, stable low-impedance operation, and comprehensive onboard tuning to integrate seamlessly into daily-driven or performance-oriented builds requiring serious bass output.

KEY BENEFITS

• 1500 W RMS at 1 ohm delivers powerful, controlled bass for high-performance subwoofer systems
• Class D design maximizes efficiency while minimizing heat generation and current draw
• Stable 1-ohm operation supports modern high-output subwoofer configurations

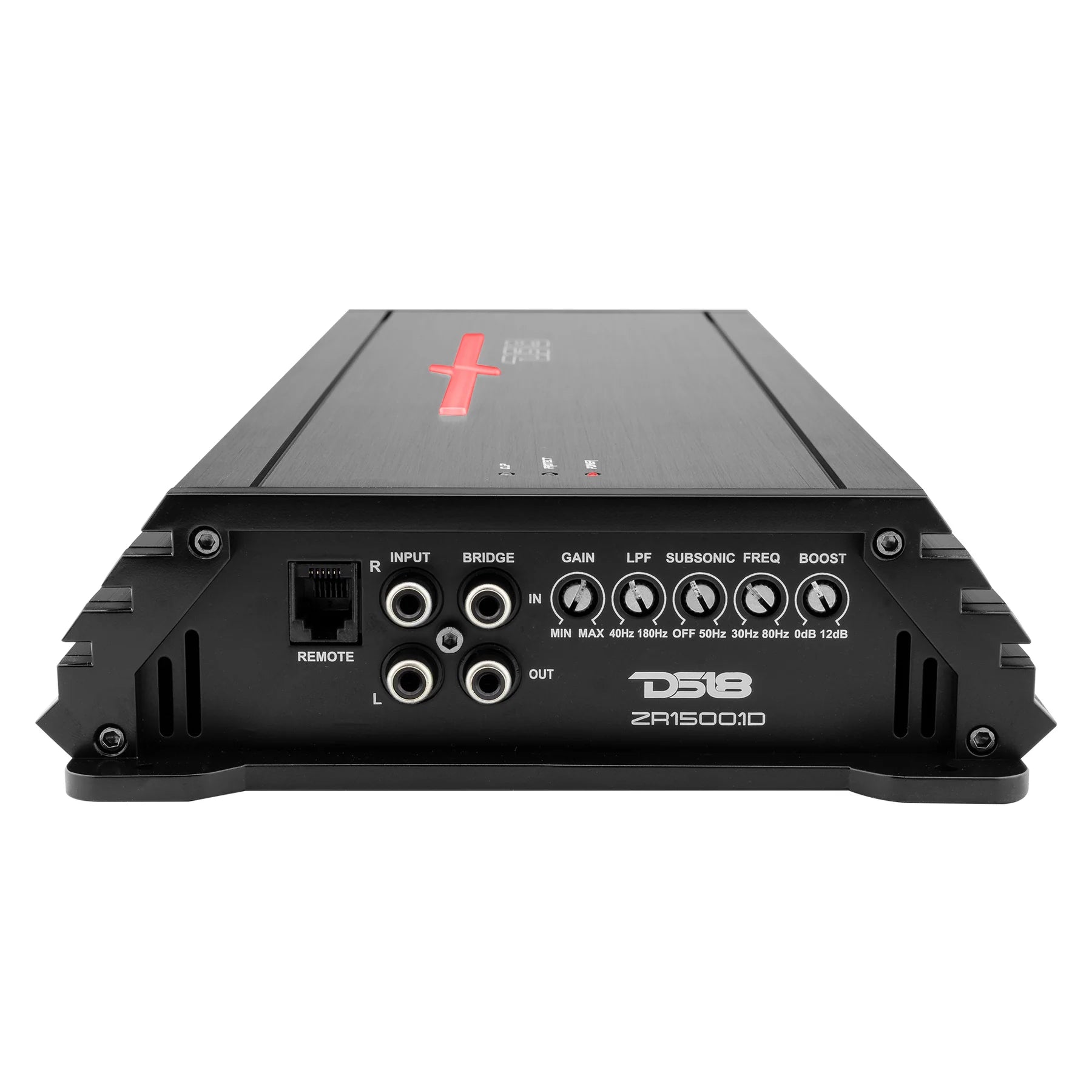

• Variable low-pass filter enables precise bass tuning and system integration
• Subsonic filter protects subwoofers from damaging ultra-low frequencies
• Adjustable bass boost allows fine control of low-frequency impact
• High- and low-level inputs ensure compatibility with factory and aftermarket head units
• Compact chassis simplifies installation in tight amplifier racks
• Heavy-duty terminals support secure connections for high-current wiring

TECHNICAL SPECIFICATIONS

• Weight: 6.83 lb
• Dimensions: 12.60″ L × 7.87″ W × 2.28″ H
• Power Handling: 1500 W RMS @ 1 Ohm
• RMS Power @ 2 Ohm: 1000 W
• RMS Power @ 4 Ohm: 600 W
• Amplifier Class: D
• Channels: 1 (Monoblock)
• Frequency Response: 20 Hz – 250 Hz
• Signal-to-Noise Ratio: >90 dB
• Low-Pass Filter: 40 Hz – 250 Hz
• Subsonic Filter: 10 Hz – 50 Hz
• Bass Boost: 0 – 12 dB
• Input Sensitivity: 0.2 V – 6 V
• Fuse Rating: 150 A
• Recommended Power Wire: 1/0 AWG

INSTALLATION & COMPATIBILITY

The DS18 ZR1500.1D is designed for subwoofer amplification in sealed or ported enclosures and performs best when paired with subwoofers capable of handling high continuous power. Its stable 1-ohm operation makes it suitable for dual-voice-coil and multi-subwoofer configurations. The amplifier supports both factory systems using high-level inputs and aftermarket head units via RCA connections. Proper electrical support, including upgraded power wiring and a solid ground, is recommended for optimal performance and reliability.

FAQS

• What products are in the DS18 ZR1500 1D collection?
  The DS18 ZR1500 1D category features high-power mono amplifiers built for deep bass and subwoofer power. This range lets shoppers compare models with strong RMS output, stable impedance handling, and robust thermal designs.
• What makes a mono amp like the ZR1500 1D important for subwoofer systems?
  Mono amplifiers dedicate all their power to low frequencies, delivering tighter and more controlled bass than multi-channel amps. Within this collection, users will find options optimized for subwoofer performance and headroom.
• How do I choose the right DS18 ZR1500 1D amp for my system?
  Focus on RMS power, stable impedance at sub loads, and size constraints. Exploring the full category helps match the amplifier to your subwoofer’s power needs and your vehicle’s electrical system.
• Are DS18 ZR1500 1D mono amps suitable for daily listening systems?
  Yes — when configured with proper tuning and enclosures, these mono amps can provide smooth, impactful bass in everyday systems. Users can explore options that balance performance with long-term reliability.
