DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm
Out of stock
Regular price
$395.95
Sale price
$395.95
Regular price
$395.94
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Shipping Information
Reviews
Description

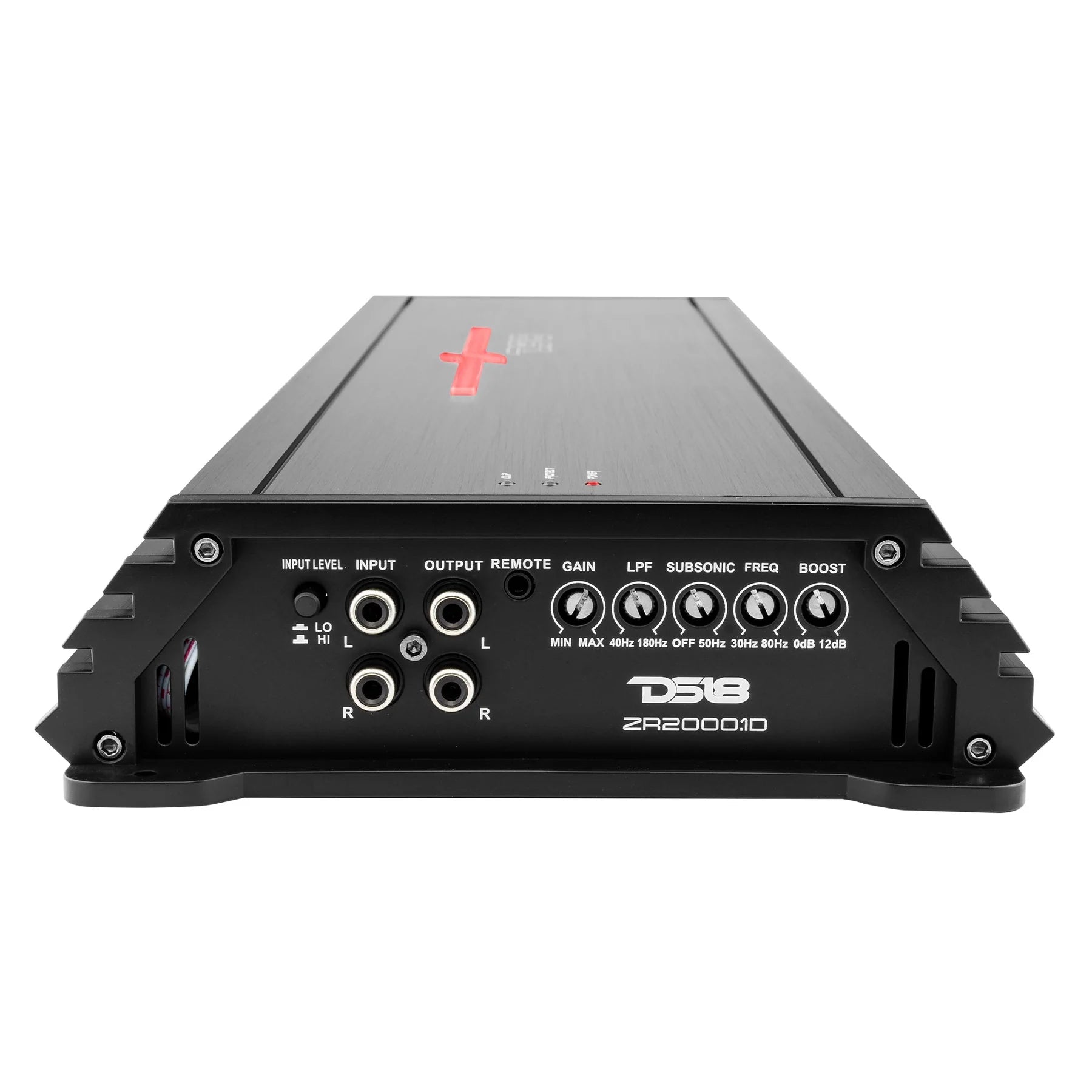

The DS18 ZR2000.1D is a high-output, monoblock Class D amplifier engineered for serious subwoofer performance. It delivers 2,000 W RMS at a 1‑ohm load, making it ideal for SPL (sound pressure level) or high-demand bass systems. Its design includes low-pass and subsonic filters, plus a bass-boost control knob for precise tuning.
Key Benefits
- Power Handling Across Loads: Offers 2,000 W @ 1 Ω, 1,300 W @ 2 Ω, and 800 W @ 4 Ω.
- High Peak Capability: Rated for up to 6,000 W peak, giving headroom for dynamic bass hits.
- Tunable Filters: Includes a fixed low-pass filter (40–180 Hz) and a subsonic filter (10–50 Hz) for refined control.
- Bass Boost: 0–12 dB bass boost at selectable frequencies (30–80 Hz), allowing for added punch when needed.

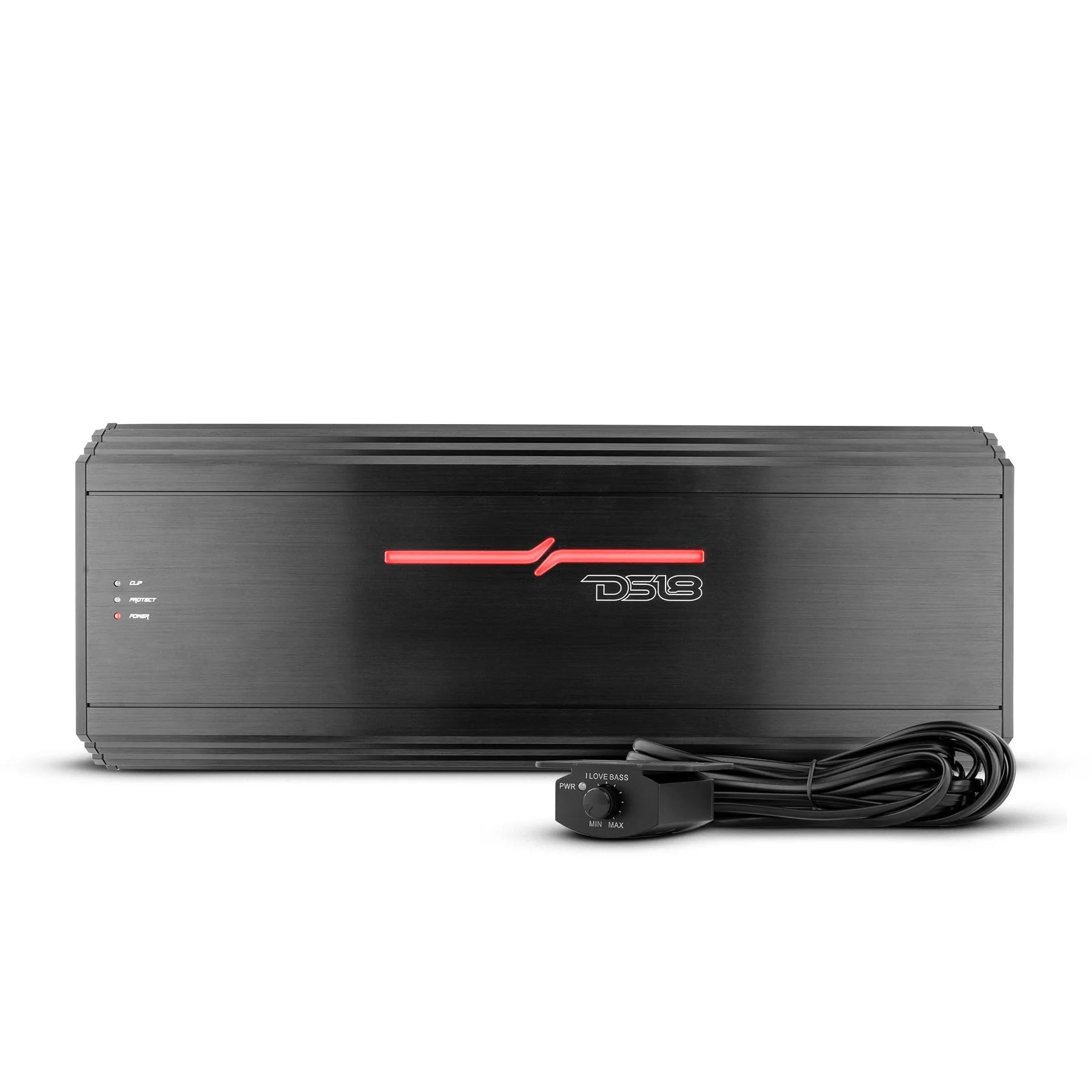

- Remote Level Control: Comes with a dash-mounted remote knob to adjust bass level on the fly.
- Robust Protection Indicators: LEDs show clipping, power, and protection status to help monitor performance.
Technical Specifications
- Power Output:
- 1 Ω: 2,000 W RMS
- 2 Ω: 1,300 W RMS
- 4 Ω: 800 W RMS
- Peak Power: 6,000 W
- Frequency Response: 10 Hz – 220 Hz
- Signal-to-Noise Ratio: > 95 dB
- THD (Total Harmonic Distortion): 0.01%
- Damping Factor: 220
- Input Sensitivity: 0.2 – 6 V
- Input Impedance: 20 kΩ
- Crossover / Filters:
- LPF: 40–180 Hz
- Subsonic: 10–50 Hz
- Fuse: 200 A
- Minimum Impedance: 1 Ω
- Operating Voltage: ~9 V to 16 V per manual.
- Physical Dimensions & Weight
- Dimensions: 19.13″ L × 7.24″ W × 2.00″ H
- Weight: ~8.1 lb (gross)
Installation & Compatibility
Wiring: Use 0-gauge power/ground cables to reliably deliver enough current.
Tuning Advice:
Set LPF around 80–120 Hz for many subwoofer systems.
Use subsonic filter at ~15–30 Hz (or lower) to protect against over-excursion.
Adjust bass boost to add punch without distorting.
Power Requirements: Because of the high RMS rating, ensure your vehicle’s electrical system (alternator, battery) can handle the load.
FAQS
- How much power does the DS18 ZR2000.1D deliver?
The ZR2000.1D is a high-power monoblock amplifier capable of delivering strong output for subwoofers needing serious bass. - Can the DS18 ZR2000.1D run a 1-ohm load safely?
Yes, it is designed for stable operation at 1-ohm, perfect for powering heavy-duty bass setups. - What subwoofers pair best with the DS18 ZR2000.1D?
Any high-wattage 10”, 12”, or 15” subs that match its RMS output will perform extremely well with this amplifier. - Does the DS18 ZR2000.1D include built-in protection features?
Yes, it has thermal, overload, and short-circuit protection to keep your system safe during intense use.
