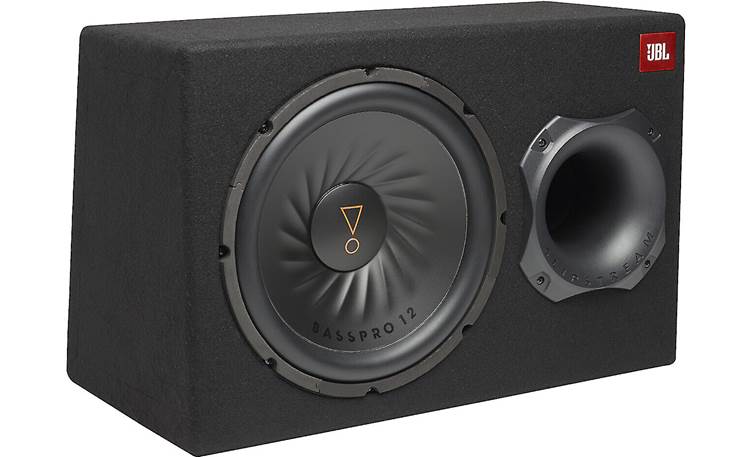

JBL BassPro 12 Ported powered subwoofer with 12" sub and 150-watt amp

The JBL BassPro 12 is a complete, ported powered subwoofer system designed to bring deep, tight bass to car audio systems in an all-in-one enclosure. Featuring a 12″ subwoofer with a polypropylene cone and a built-in 150 W RMS amplifier capable of up to 450 W peak output, it delivers extended low-frequency performance with minimal turbulence thanks to its engineered port design. Included remote bass level control and flexible input options make this subwoofer ideal for enthusiast installers and drivers seeking significant bass enhancement without adding an external amplifier.

KEY BENEFITS

• Integrated 150 W RMS amplifier with 450 W peak power simplifies system design and matches the sub’s performance envelope
• 12″ polypropylene cone with rubber surround ensures reliable excursion and longevity in automotive environments
• Ported enclosure with engineered airflow reduces turbulence noise for cleaner, deeper bass output
• Broad frequency response down to approximately 30–35 Hz provides impactful low-end extension suited to music and movies
• Adjustable low-pass crossover (approx. 40–200 Hz) allows optimized integration with full-range systems
• Variable bass boost up to ≈+12 dB at 45 Hz enhances low-frequency presence where needed
• Speaker- and line-level inputs offer flexible connectivity with factory or aftermarket head units
• Included remote level control lets users adjust bass level from the driver’s seat for convenience

TECHNICAL SPECIFICATIONS

• Weight: 34.30 lb
• Dimensions: 22.50″ L × 14.63″ H × 12.00″ D (approximate ported box envelope)
• Amplifier Power: 150 W RMS / 450 W Peak
• Subwoofer Size: 12″
• Frequency Response: 30 Hz – 200 Hz (system)
• Crossover Frequency: Adjustable approx. 40 Hz – 200 Hz
• Crossover Slope: ~12 dB/octave
• Bass Boost: 0 dB to +12 dB @ ≈45 Hz
• Input Sensitivity: Low-level ~0.065 V – 2 V; High-level ~0.35 V – 10 V
• Fuse Rating: 25 A
• Maximum Current Draw: ~20 A
• Subwoofer Cone Material: Polypropylene
• Surround: Rubber

INSTALLATION & COMPATIBILITY

The BassPro 12 arrives in a fully ported enclosure ready for installation in trunks, hatchbacks, or under rear seats where space permits. Its built-in amplifier eliminates the need for a separate power amp, and both line-level and speaker-level inputs ensure compatibility with factory radios or aftermarket head units. Proper power and ground wiring with appropriate gauge (8 AWG recommended) will ensure reliable operation and low-end performance. Ideal for daily drivers and enthusiast systems looking to add significant bass reinforcement without complex component integration.
