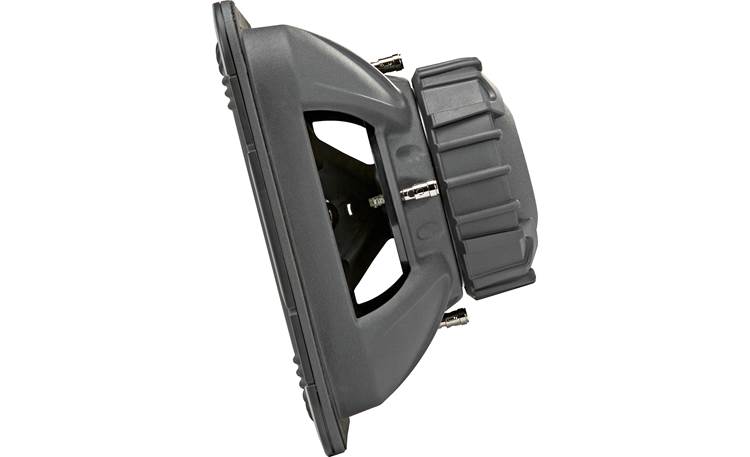

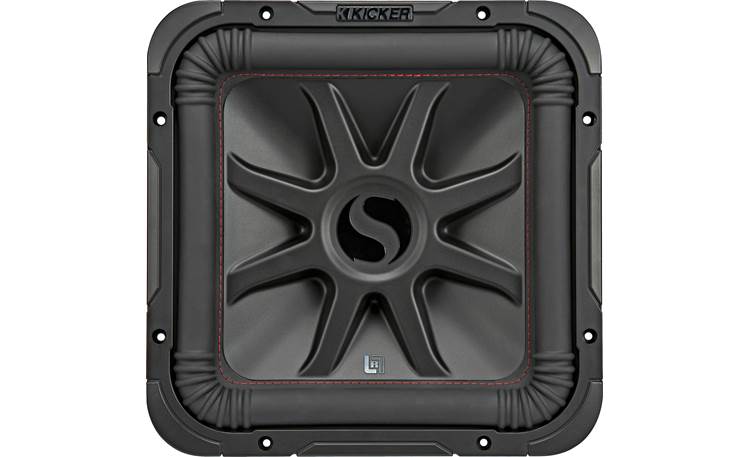

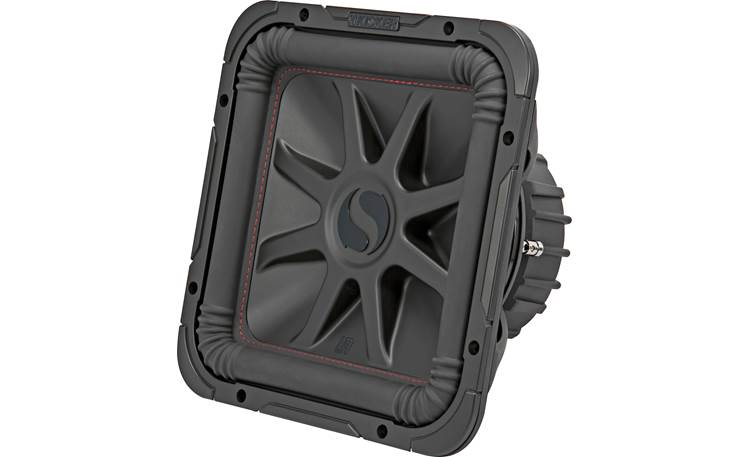

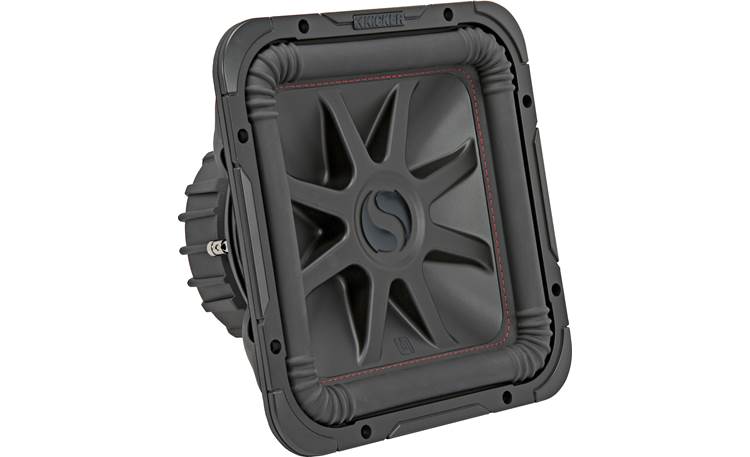

KICKER L7R 12-Inch (30cm) Subwoofer, DVC, 2-Ohm, 600W

The KICKER L7R 12″ (30 cm) Subwoofer with dual 2‑ohm voice coils is designed for deep, high-impact bass from a compact yet powerful driver. Engineered for both sealed and vented enclosures, this square Solo‑Baric subwoofer efficiently moves more air than traditional round designs, making it ideal for enthusiasts and professional installers seeking strong low-frequency performance. With 600 W RMS power handling and up to 1200 W peak, it delivers balanced SPL and musical bass for daily drivers, weekend cruisers, or show vehicles.

KEY BENEFITS

• 600 W RMS power handling supports sustained, distortion-free bass output
• 1200 W peak capability provides headroom for dynamic low-frequency punch
• Dual 2‑ohm voice coils allow flexible wiring options to match amplifier configurations
• Square SoloKon™ cone increases cone area for more air displacement in the same footprint
• Robust steel basket and 360-degree back bracing ensure mechanical stability under heavy excursion
• Thick tinsel leads and nickel-plated terminals support reliable current flow and connectivity
• Sensitivity of ~86.7 dB delivers efficient acoustic output with moderate amplifier power
• Optimized for both tight sealed and high-output vented box applications

TECHNICAL SPECIFICATIONS

• Weight: 21.40 lb
• Dimensions: 12.00″ nominal diameter
• Power Handling: 600 W RMS / 1200 W Peak
• Impedance: Dual 2 Ω (DVC)
• Frequency Response: ~25 Hz–100 Hz
• Sensitivity: 86.7 dB 1 W/1 m
• Cone Material: Injection-molded SoloKon™ polypropylene
• Surround: Santoprene rubber
• Mounting Depth: 6.88″
• Mounting Diameter: 11.06″
• Recommended Sealed Box Volume: 0.88–2.0 cu. ft.
• Recommended Vented Box Volume: 1.75–3.25 cu. ft.

INSTALLATION & COMPATIBILITY

The L7R 12″ subwoofer works in both sealed and ported enclosures, giving installers flexibility to tune for tight, accurate bass or higher-output low end. Pair it with a quality monoblock amplifier delivering near its 600 W RMS rating to maximize performance. Dual 2‑ohm voice coils allow different wiring options to match amplifier impedance. The SoloKon™ square design efficiently moves air in limited space, suitable for sedans, hatchbacks, trucks, and custom installations that require impactful bass without sacrificing reliability.

FAQS

• What products are included in the Kicker L5 Solo-Baric 12 collection?
  This category features 12-inch square subwoofers known for their distinctive cone design and strong bass output. Shoppers can compare impedance options and power ratings for different enclosure and amplifier setups.
• How does a square subwoofer differ from a round one?
  Square subs like the L5 move more air than traditional round designs, resulting in louder bass. Exploring this collection helps users decide if maximum output is more important than compact enclosure size.
• What systems work best with a Kicker L5 Solo-Baric 12?
  These subs perform well in ported or sealed enclosures with adequate amplifier power. Browsing the category helps match RMS ratings and wiring options to your system goals.
• Are L5 Solo-Baric 12 subwoofers good for daily use?
  Yes, when properly tuned, they can deliver strong daily bass. The collection includes options that balance durability and output for everyday listening or more aggressive setups.
