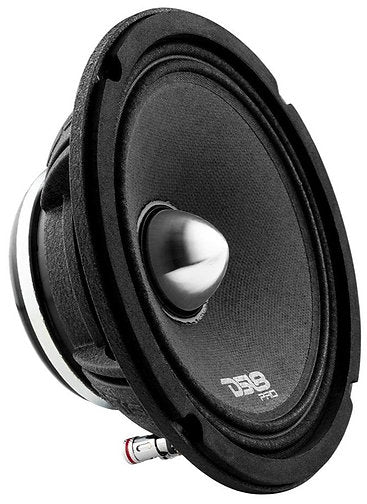

DS18 PRO-FR6NEO 6.5" Neodymium Full-Range Loudspeaker with Bullet 450 Watts 4-Ohm with Grill

The DS18 PRO-FR6NEO is a high-performance 6.5-inch full-range loudspeaker engineered for demanding car audio enthusiasts who need loud, clean, and dynamic sound. Built with a lightweight neodymium magnet, aluminum basket, and an aluminum bullet phase plug, this driver delivers powerful midrange presence and extended high-frequency output. With 450 watts peak, high sensitivity, and an included protective grill, it is ideal for custom doors, show vehicles, and pro-audio-style systems seeking maximum clarity and efficiency.

Key Benefits

• Neodymium magnet motor for strong output with reduced weight.
• High power handling: 225W RMS and 450W Peak for loud, dynamic performance.
• Wide frequency response from 200 Hz to 16 kHz for clear mids and highs.
• High 96 dB sensitivity for excellent output with moderate amplifier power.
• Aluminum bullet phase plug improves dispersion and high-frequency projection.
• Durable aluminum basket and non-pressed paper cone for strength and sound fidelity.
• Includes protective grill, ideal for show-quality installations.
• Shallow 2.36-inch mounting depth suitable for tight door or panel spaces.

Technical Specifications

• Weight: 2.90 lb
• Dimensions: 8.00″ L × 8.00″ W × 3.25″ H
• Power Handling: 225W RMS, 450W Peak
• Impedance: 4 ohm
• Frequency Response: 200 Hz – 16 kHz
• Sensitivity: 96 dB (1W/1m)
• Voice Coil: 1.5″ Kapton former, CCAW
• Magnet Type: Neodymium
• Cone Material: Non-pressed paper
• Surround: Cloth edge
• Basket Material: Aluminum
• Mounting Depth: 2.36″
• Cutout Diameter: 5.7″
• Free-Air Resonance (Fs): approximately 151.63 Hz
• Vas: approximately 4.288 L
• Xmax: approximately 6.8 mm
• Qms: approximately 9.143
• Qes: approximately 0.319
• Qts: approximately 0.309
• DC Resistance (Re): approximately 3.2 ohm
• Voice Coil Inductance (Le): approximately 0.472 mH
• Cone Area (Sd): approximately 136.85 cm²

Installation & Compatibility

The PRO-FR6NEO is designed for versatile installation thanks to its shallow mounting depth and standard 6.5-inch format. It fits most factory speaker locations with minimal modification and works exceptionally well in custom door panels, pods, and pro-audio builds. For best performance and longevity, it is recommended to pair it with an amplifier matched to its RMS rating and to use a high-pass crossover set near 200 Hz to prevent over-excursion at low frequencies.

FAQS

• What makes the DS18 PRO FR6NEO a popular choice for midrange?
  Its neodymium magnet keeps weight low while delivering loud, clean mids. It’s ideal for door builds needing strong vocal projection and minimal strain on the vehicle’s structure.
• How does the FR6NEO compare to ferrite-based 6.5"" speakers?
  Neodymium models like the FR6NEO are louder, more efficient, and lighter. Ferrite versions are cheaper but heavier. NEO speakers are preferred for high-output or competition-style builds.
• Do I need an amplifier to get the best performance from the FR6NEO?
  Yes—the speaker handles high RMS power and requires an aftermarket amp to reach its full potential. Clean amplification ensures clarity and avoids distortion at high volume.
• What should I check before installing the FR6NEO in my doors?
  Review depth, ensure solid mounting, and add sound deadening to reduce resonance. Proper EQ and crossovers keep mids smooth and prevent harshness at elevated listening levels.
