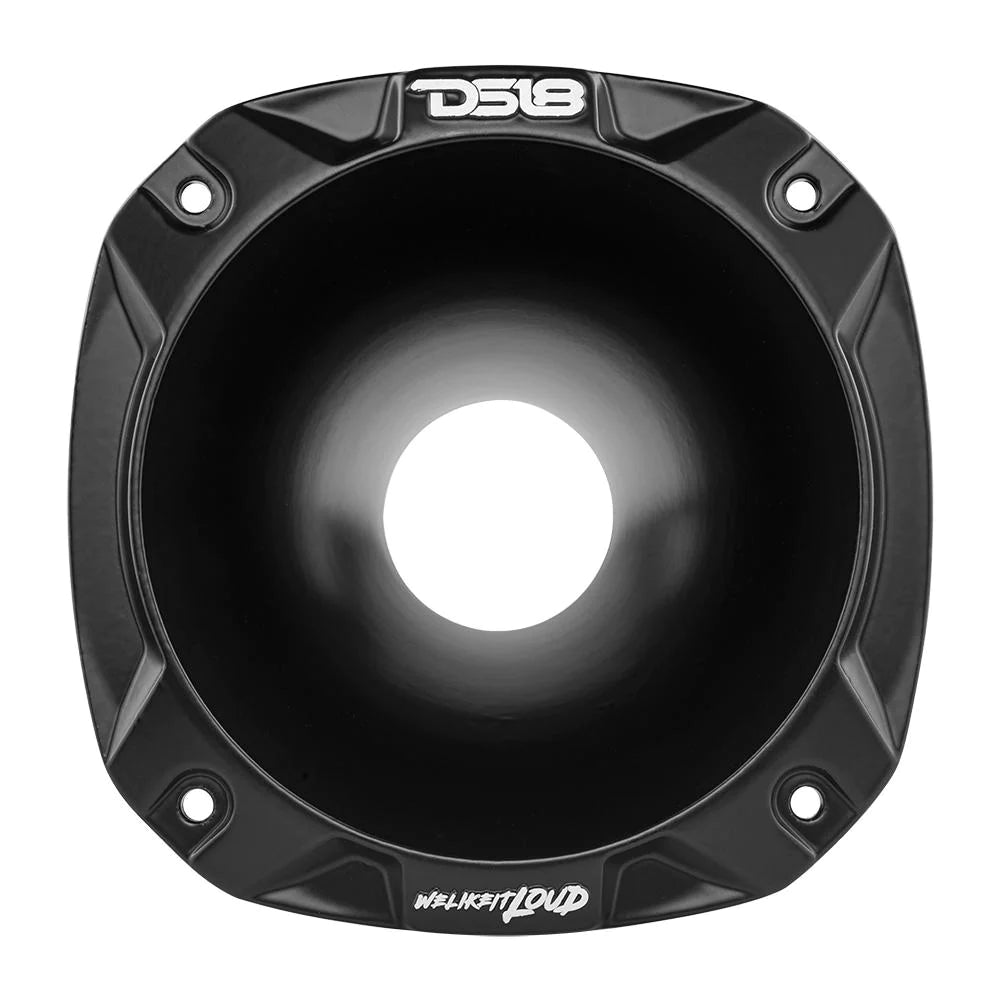

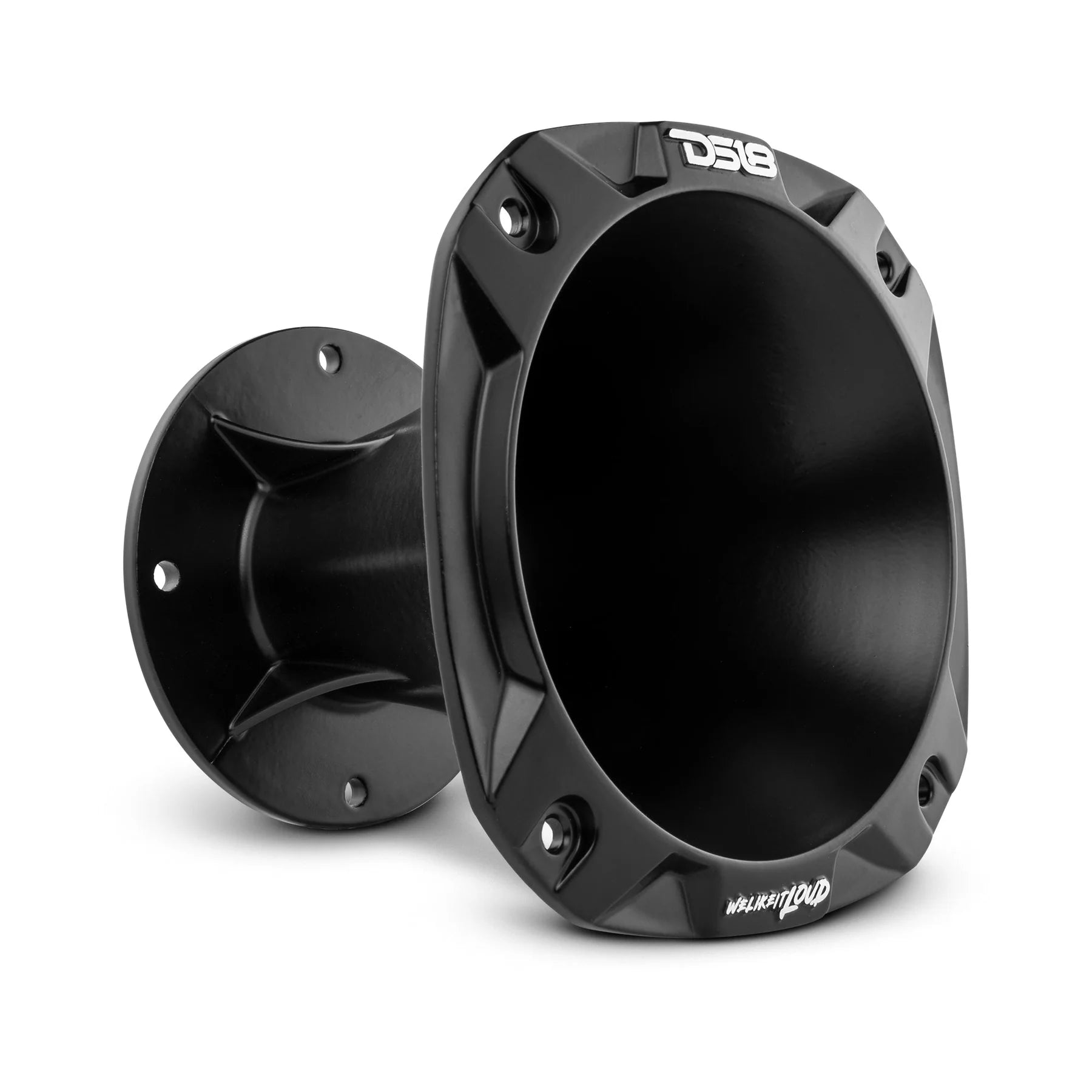

DS18 PRO-HA102/BK 2" 100¡ Aluminum Bolt On Horn (Black)

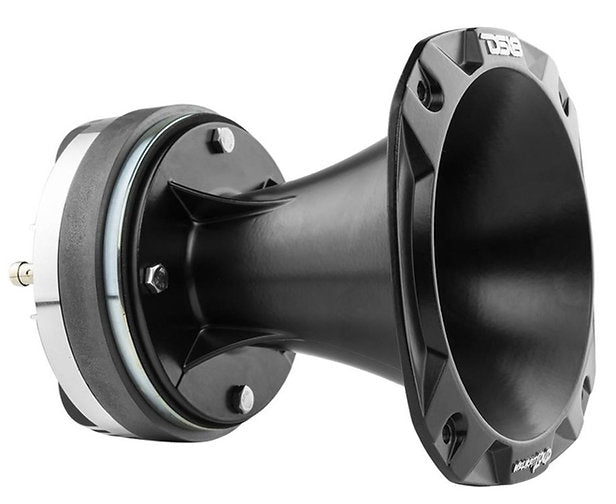

PRO-D1 2" Bolt On Throat Compression Driver with 2" Titanium Voice Coil and PRO-HA102/BK Horn 640 Watts 8-ohm

Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do.

Highlights

Full size aluminum throat horn with a brushed DS18 logo for maximum loudness and aesthetics.

New redesigned backplate for an amazing look.

High wattage driver requiring 220w AES power and 640w max for ear blasting high range frequencies.

Specifications
Peak Power Handling 640 Watts
Program Power handling 320 Watts
AES Rated Power 160 Watts
Sensitivity 108 dB
Frequency Response 800Hz-18.5KHz
Nominal Impedance 8 ohms
Throat Diameter 2"
Recommended Hi Pass Crossover 900 Hz
Voice Coil Diameter 2.03"
Diaphragm Material Titanium
Magnet Material Ferrite
magnet Weight 35 oz
Bolt Type Bolt-on
Mesurements
Overall Diameter 6.88"
Overall depth 7.5"
