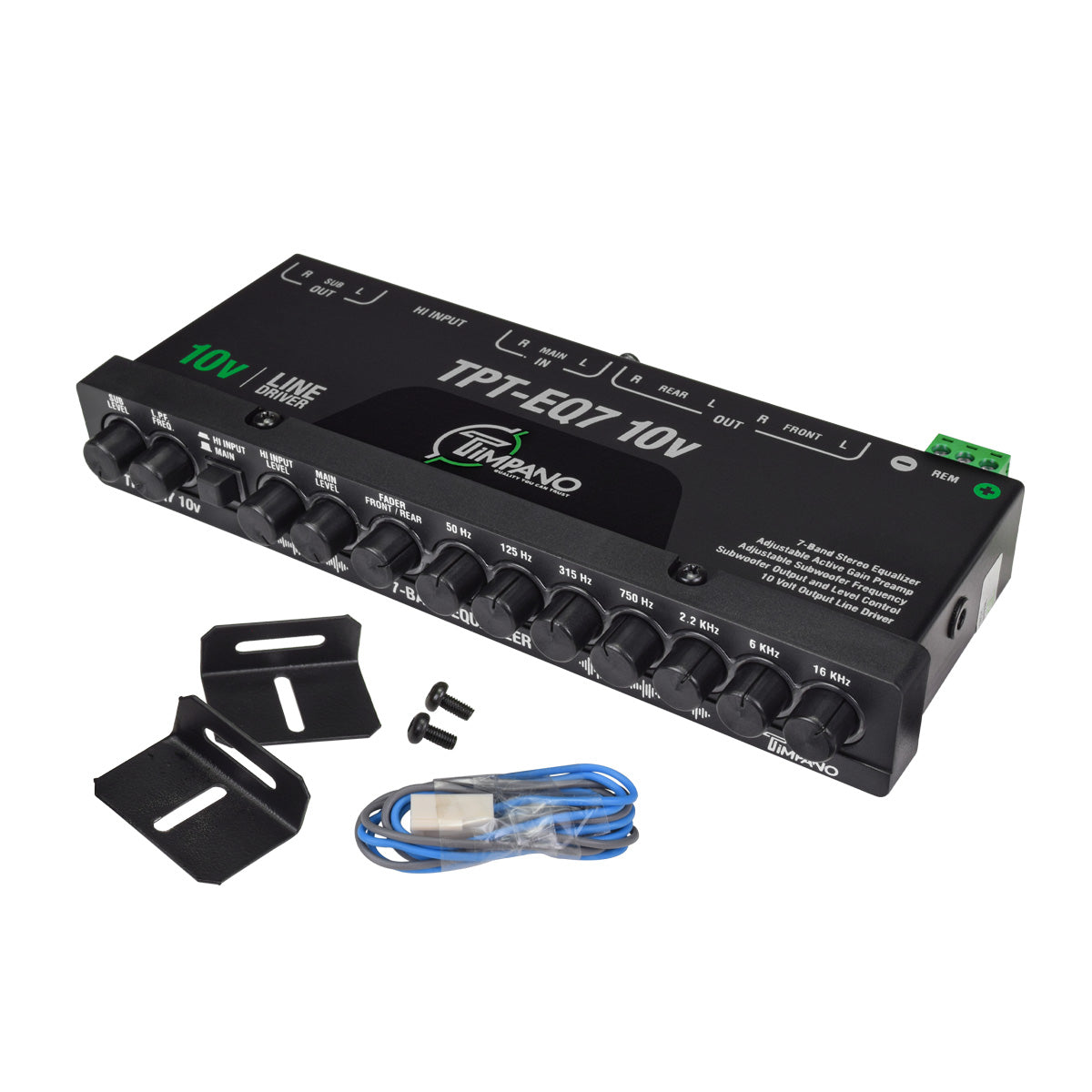

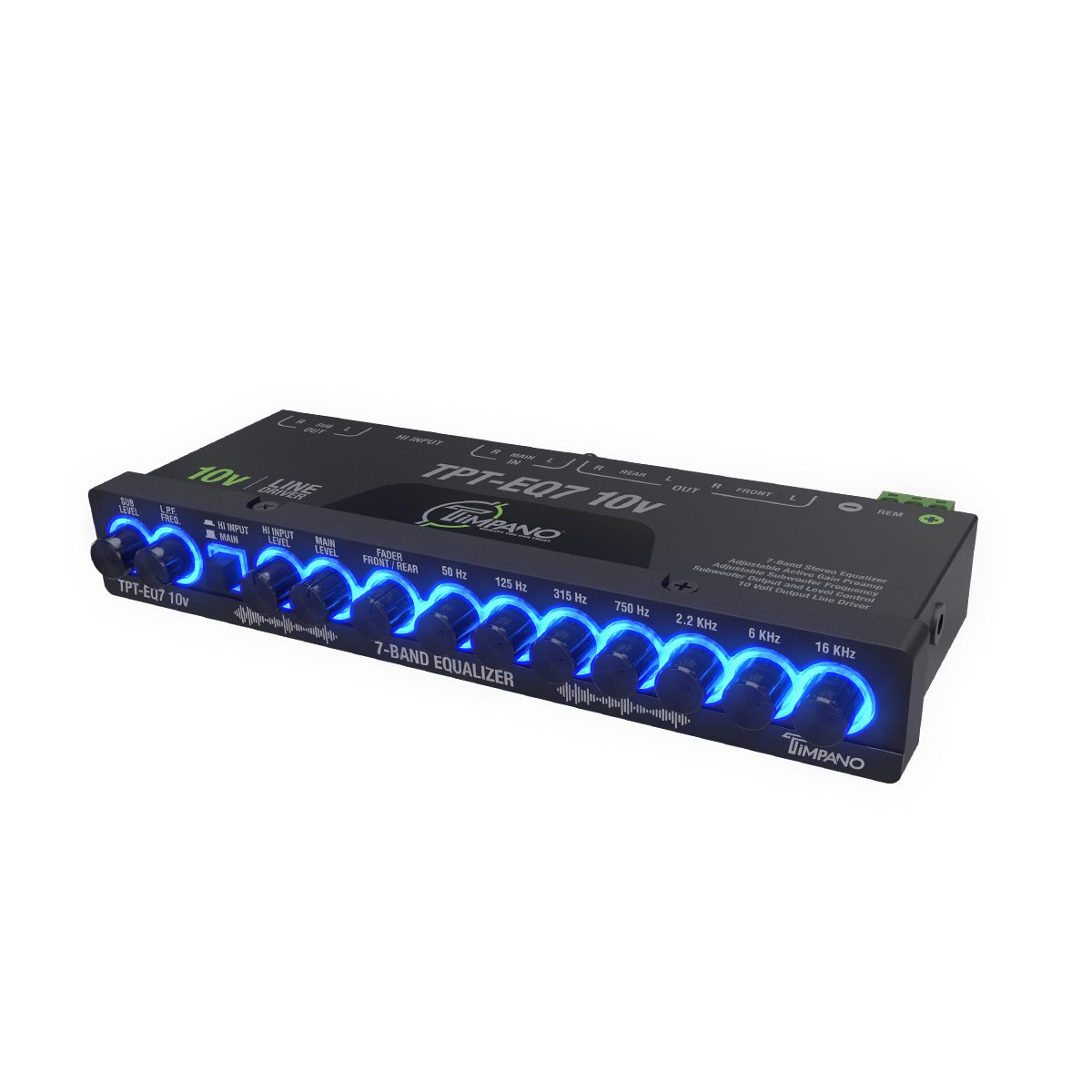

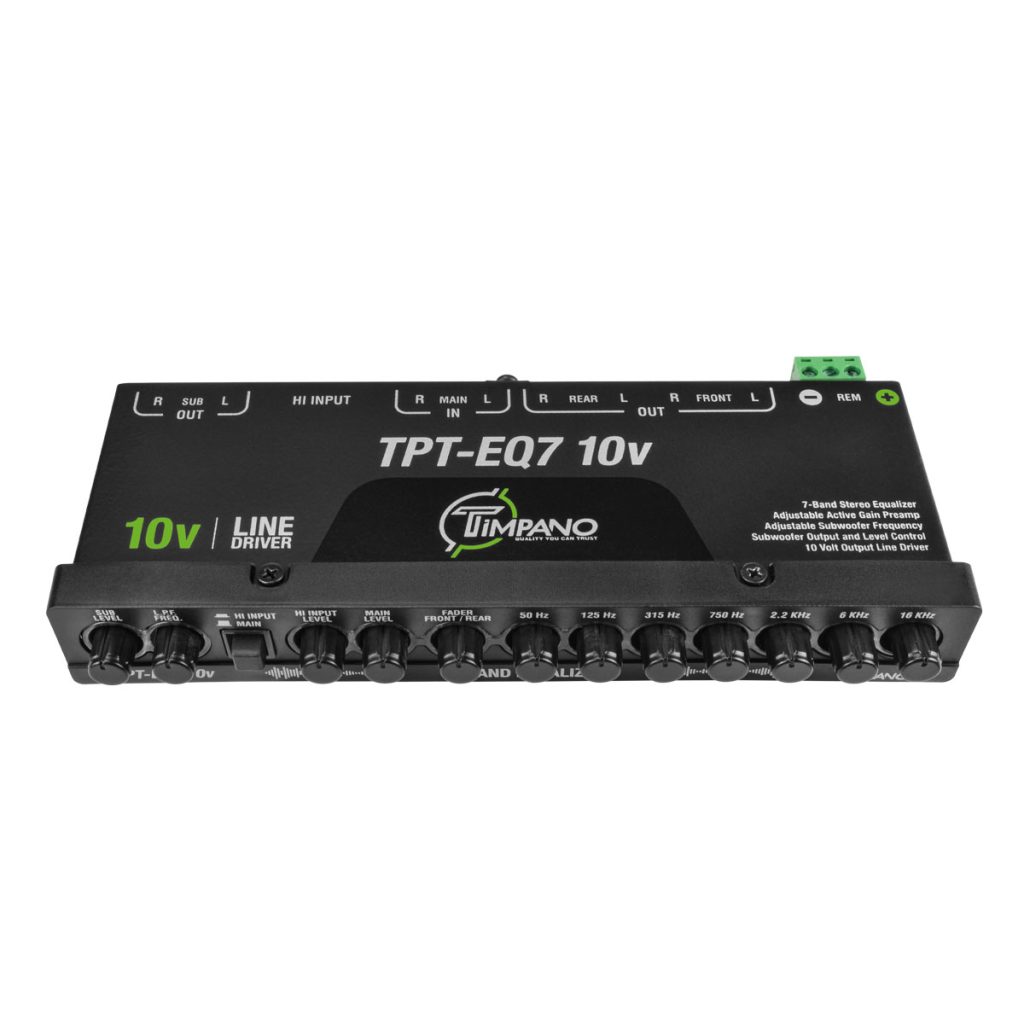

TPT-EQ7 10V Band Equalizer High Voltage Line Driver

The Timpano TPT-EQ7-10V is a 7-band graphic car audio equalizer and high-voltage line driver engineered for enthusiasts and installers who demand precise tonal control in automotive sound systems. With seven independently adjustable frequency bands spanning from 50 Hz to 16 kHz and ±12 dB adjustment range, this unit allows fine tuning of bass, mids, and highs to match listener preferences or vehicle acoustics. Its up to 10 V RCA line outputs and six RCA output channels support clean signal delivery over long runs, enhancing clarity and reducing noise. Ideal for upgrading factory systems or integrating aftermarket amplifiers with versatile input options.

KEY BENEFITS

• Seven adjustable bands (50 Hz, 125 Hz, 320 Hz, 750 Hz, 2.2 kHz, 6 kHz, 16 kHz) let installers tailor frequency response precisely to cabin acoustics
• ±12 dB per band provides extensive control to boost or cut specific audio regions for customized sound tuning
• High-voltage line driver delivers up to 10 V RMS on RCA outputs for low-noise signal transfer and improved dynamic range
• Six RCA outputs (front, rear, sub) allow flexible routing to multiple amplifiers or processors
• Built-in high-level input converts speaker-level signals to RCA, enabling use with factory radios lacking preamp outputs
• Dedicated subwoofer level and low-pass control help integrate and balance bass with main channels
• Compact 1/2 DIN form factor fits most dash or panel installations without major modification

TECHNICAL SPECIFICATIONS

• Weight: 0.68 lb
• Dimensions: 7.25″ L × 2.25″ W × 1.00″ H
• Frequency Bands: 7 Band Graphic EQ (50 Hz – 16 kHz)
• EQ Range: ±12 dB per band
• Outputs: Front, Rear, Subwoofer (6 RCA)
• Max RCA Output Voltage: Up to 10 V RMS
• Inputs: RCA Main In / High-Level Speaker Input
• Subwoofer LPF Frequency: 60 Hz – 90 Hz (adjustable)
• Frequency Response: 5 Hz – 140 kHz
• Working Voltage: 9 V – 16 V DC
• Total Harmonic Distortion (THD): <0.1 %
• Signal-to-Noise Ratio (SNR): >100 dB
• Input Sensitivity: Main RCA 3.3 V / High-Level 25 V

INSTALLATION & COMPATIBILITY

The TPT-EQ7-10V installs into standard 1/2 DIN dash openings or custom panel locations, offering a compact solution for adding graphic equalization to automotive systems. Its high-level input and RCA outputs enable seamless connection with factory head units or aftermarket processors, while the adjustable subwoofer controls simplify integration with dedicated low-frequency amplification. Ensure adequate mounting clearance behind the dash and secure RCA routing to minimize noise in long cable runs. Ideal for sedans, trucks, and custom audio builds requiring refined tonal control without DSP complexity.
