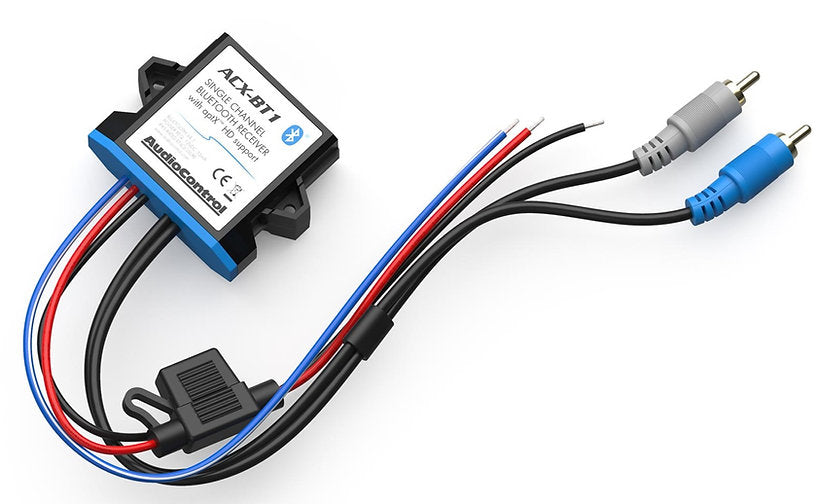

Audio Control ACX-BT1 All-Weather Bluetooth Streamer

All-weather bluetooth¨ streamer

"he AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.

Features

High Definition Low-Latency Audio Streaming
aptXTM HD Support
24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
IPX5 rated enclosure
Built in fuse

Specifications

Bluetooth

Version: 4.1
aptX HD Compatible

output

Dual Line Level RCA
Nominal Output Level: 1.5 Vrms

Performance

Signal to Noise Ratio: 95 dB
Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
Operating Range: 10+ meters (depending on environment)

General

Current Draw: 35 mA
Fuse Rating: 2 A

Weights & dimensions

Dimensions (enclosure): 2.0ÓL x 2.5ÓW x 0.7ÓH
Weight: 0.2 lbs. (91 g)
in the box: ACX-BT1, Warranty"
