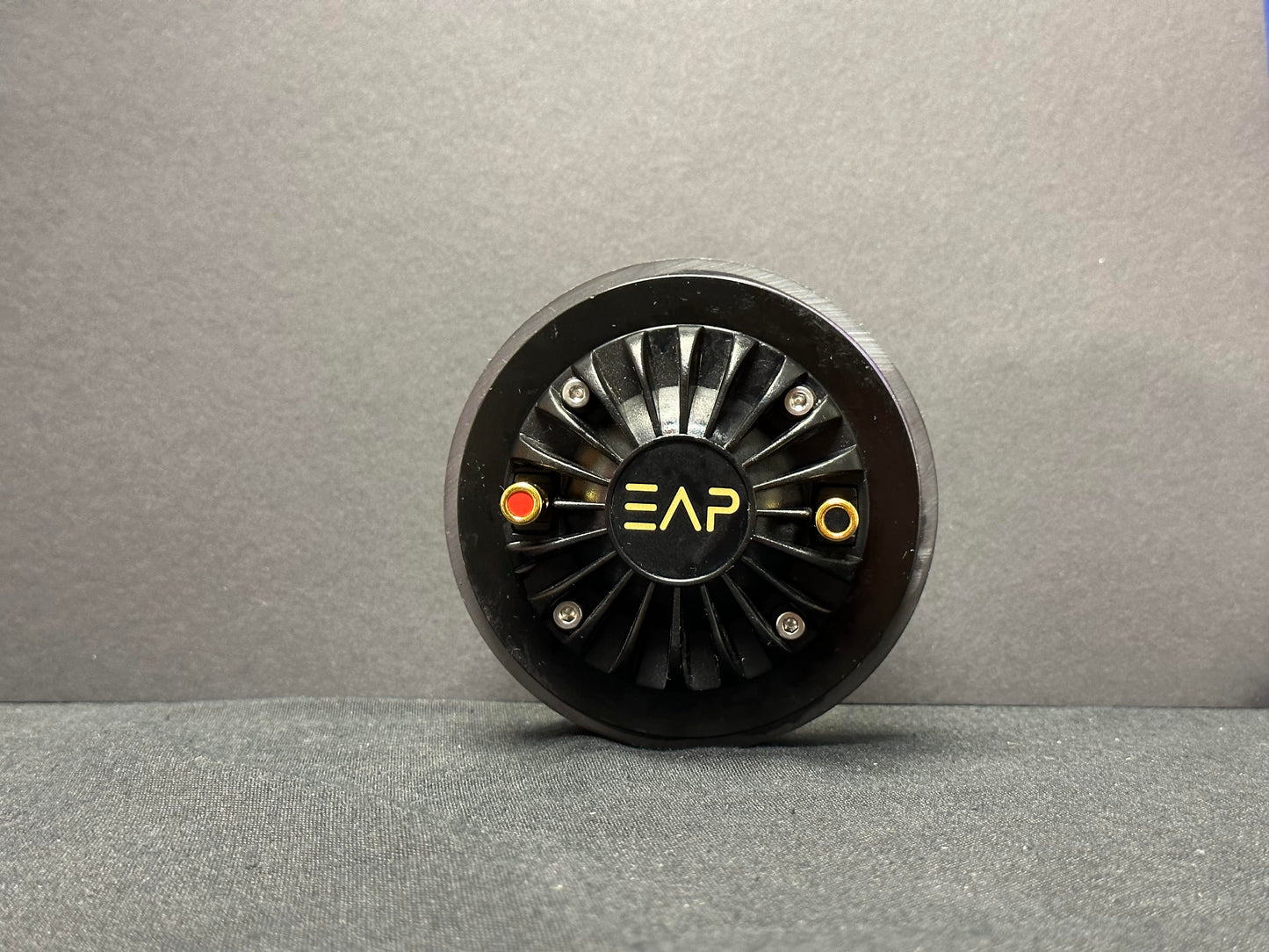

Driver 1"inch Polyimide EAP P400 8 Ohms

Description
EAP Driver Polyimide Ferrite P400 8 Ohms



Specially developed for the reproduction of medium and high frequencies, the Driver EAP P400 is indicated for use in systems with 2, 3 or 4 ways (with or without phenolic drivers), when looking for better sound and greater resistance, free of characteristic metallic timbres. of the titanium diaphragm.



It has an effective response from 1500hz with ACTIVE crossover HPF 1500hz 24db/8th (not passive as other brands promise)



With the dome diaphragm in Polyimide Pearl Dome ®, which provides high sensitivity, low distortion and high reliability even at frequencies below 2khz.


Its moving coil is manufactured with CCAR (Copper Clad Aluminum Ribbon) wire, wound in Kapton form, obtaining great stability and thermal resistance.



RMS power:

-100Wrms - HPF 1500hz@24db/8th (Active Crossover)

-125Wrms -HPF 3300hz@24db/8th (Active Crossover)



Technical specifications:

Throat Diameter: 1" (25mm)
Nominal Impedance: 8Ohms
RE: 6.2Ohms
AES Power: 100W rms - HPF 1500hz@24db/8th (Active Crossover)
Musical Program: 200W - HPF 1500hz@24db/8th (Active Crossover)
Crossover Min. Recommended: 1500Hz (24dB/oct)
Sensitivity: 111 dB SPL (1W/M)
Frequency Response: 1000Hz to 20KHz @ -8dB
Moving Coil Diameter: 44.4mm
Coil Body Material: Polymide (Kapton)
Coil Wire Material: CCAR (Copper Clad Aluminum Ribbon)
Diaphragm Material: Polyimide Pearl Dome®
Magnetic Material: Ferrite
Cover Material: Injected ABS
