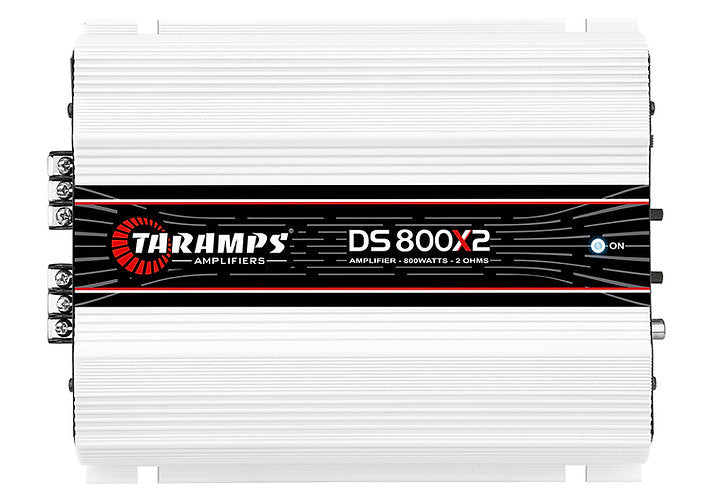

Taramps DS 800x2 2 Channels 800 Watts RMS Car Audio Amplifier 2 Ohms

SKU: DS800X2 2-OHM

Regular price $169.00
Sale price $169.00 Regular price $0.00

Taramps DS 800x2 2 Channels 800 Watts RMS Car Audio Amplifier 2 Ohms

Product description

Taramps Amplifier Module Class D (2 Channels 400 Watts RMS)

"The DS800X2 was designed for anyone who likes to enjoy all frequency ranges with high definition and technology for car audio systems. It is stereo, with a maximum power of 800 Watts RMS and an impedance of 2 ohms. It has 2 channels of 400 Watts RMS each, or 1 channel connected in BRIDGE with 800 Watts at 4 ohms. The DS 800X2 is FULL RANGE and will certainly play all frequencies the way you like it most.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 02
MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS)
@ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS)
@ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W)
1 Bridged CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)
INPUT SENSITIVITY 250mV
SIGNAL TO NOISE RATIO >96dB
FREQUENCY RESPONSE 10Hz to 22KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 80Hz to 2.2KHz (-6dB/8a) Variable
CROSSOVER LOW PASS (LPF) 80Hz (-12dB/8») Fixed
EFFICIENCY 83%
INPUT IMPEDANCE 18K Ohms
OUTPUT IMPEDANCE 2 Ohms
PROTECTION SYSTEM output overload
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST @12.6 VDC: 0.85A
MAXIMUM MUSIC CONSUMPTION @12.6 VDC: 38A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 77A
DIMENSIONS (WXHXD) 7.24"" x 2.13"" x 7.48"" (173 x 52 x 227mm)
WEIGHT 3.04lb (1,43kg)
EAN 7898556844048"
