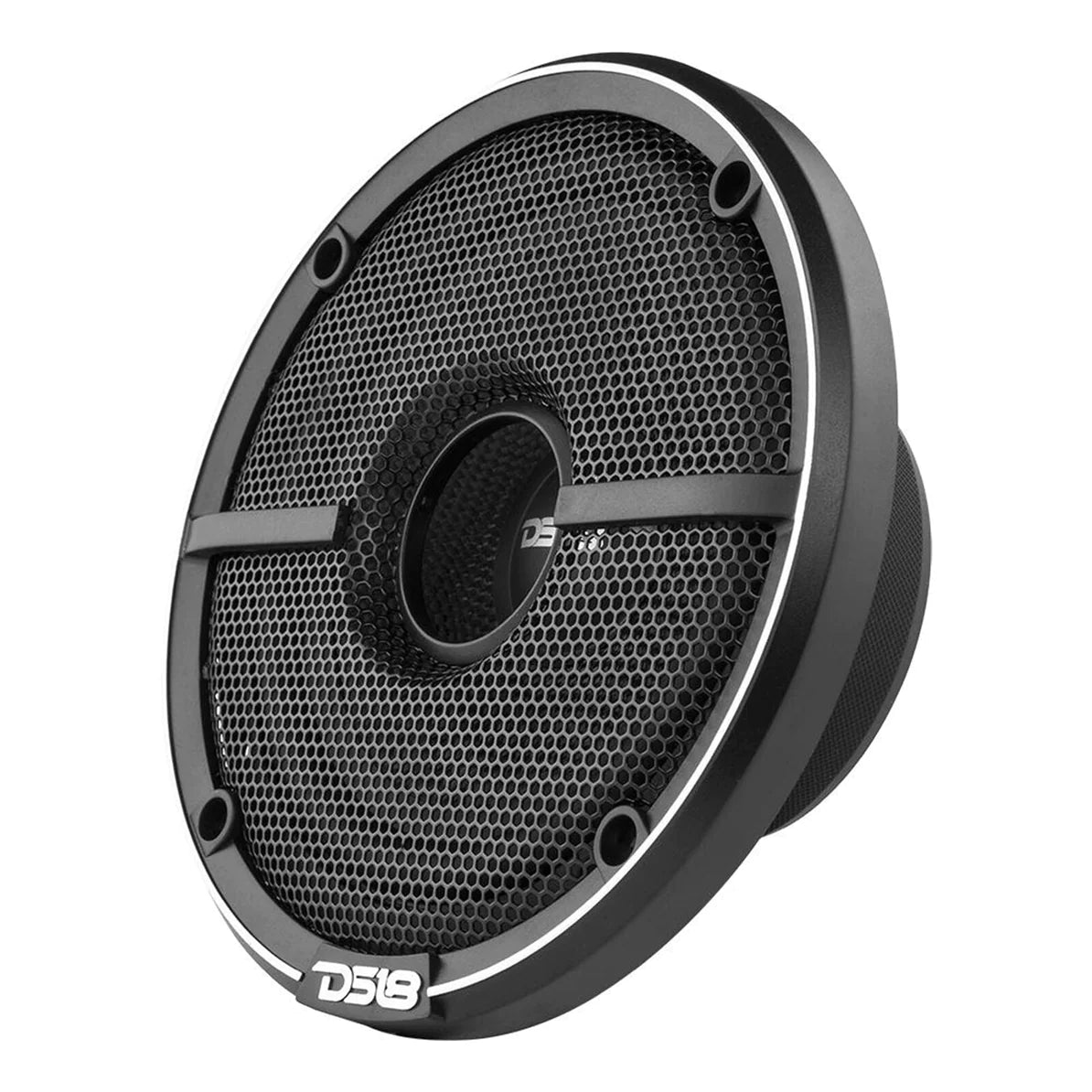

DS18 ZXI-62C 6.5" 2- Way Component Speaker System with Kevlar Cone 240 Watts 4-Ohm
Regular price
$139.95
Sale price
$139.95
Regular price
$174.94
DS18 ZXI-62C 6.5" 2- Way Component Speaker System with Kevlar Cone 240 Watts 4-Ohm
Product description
Shipping & Return
Product reviews
DS18 ELITE 6.5" 240 Watt 4 Ohm 2-Way Component Speaker System with Kevlar Cone
This DS18 component system will bring a full range of frequencies to your ears and with incredible sound quality you will enjoy. DS18's ZXi line is both highly innovative and intuitive making it an extremely versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5" that handles 80 watts RMS and 240 Max watts. It has a 89 DB sensitivity rating so you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30 watt RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossovers will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!
Grills are included!
This Listing Includes:

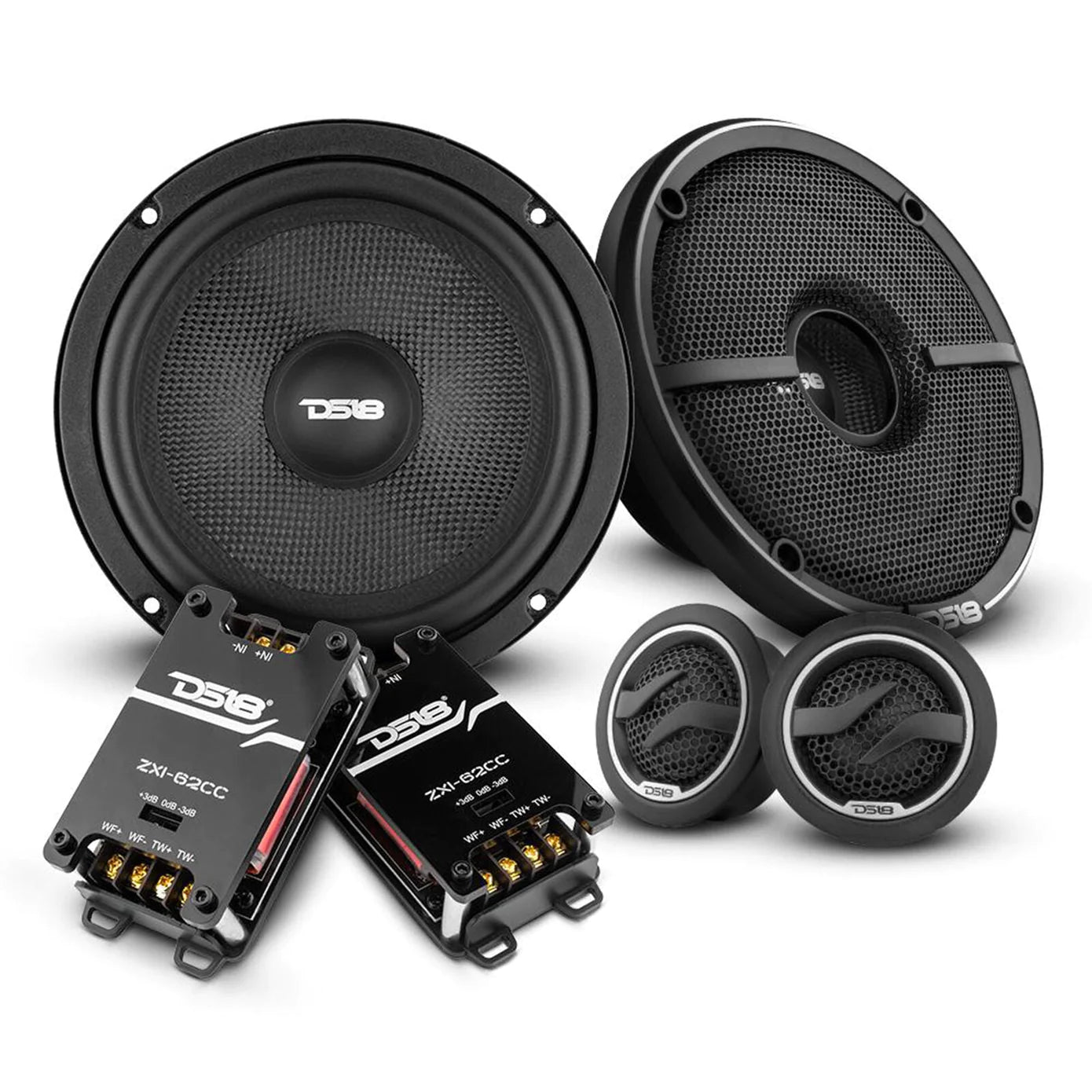

(1) DS18 6.5" Component Speaker System
Features:
-Highly durable and extremely loud design built for the average to extreme audio systems
-Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power
-Component design will bring a full range of frequencies to your ears and with great sound quality
GENERAL SPECIFICATIONS:
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohm
RMS Power Handing: 80W
MAX Power Handing: 240W
Sensitivity (1w/1m): 88dB
Frequency Response: 40Hz-20Khz
Recommended HI Pass Crossover: 60Hz
Speaker Type: 2-Way
WOOFER SPECIFICATIONS:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 14.4 oz / 410g
Grill Included: Yes
Pair: Yes

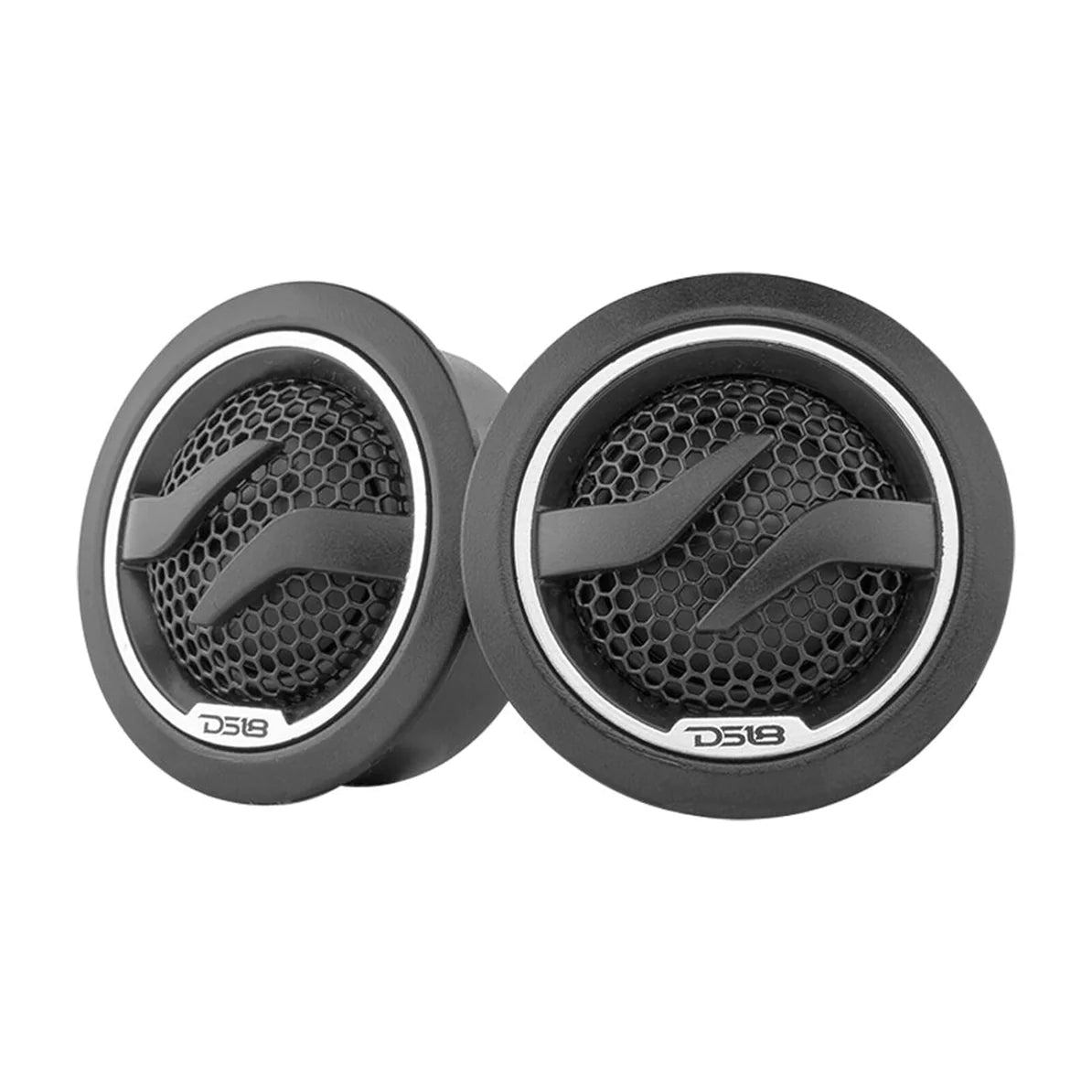

TWEETER SPECIFICATIONS:
Nominal Diameter: 1.25" (31.7mm)
Voice Coil Diameter: 1"(25.5mm)
Voice Coil Former Material: ASV
Winding Material: EISVM
Diaphragm Material: SILK
Magnet Material: Neodymium
Magnet Weight: 0.46 oz / 13g
Pair: Yes

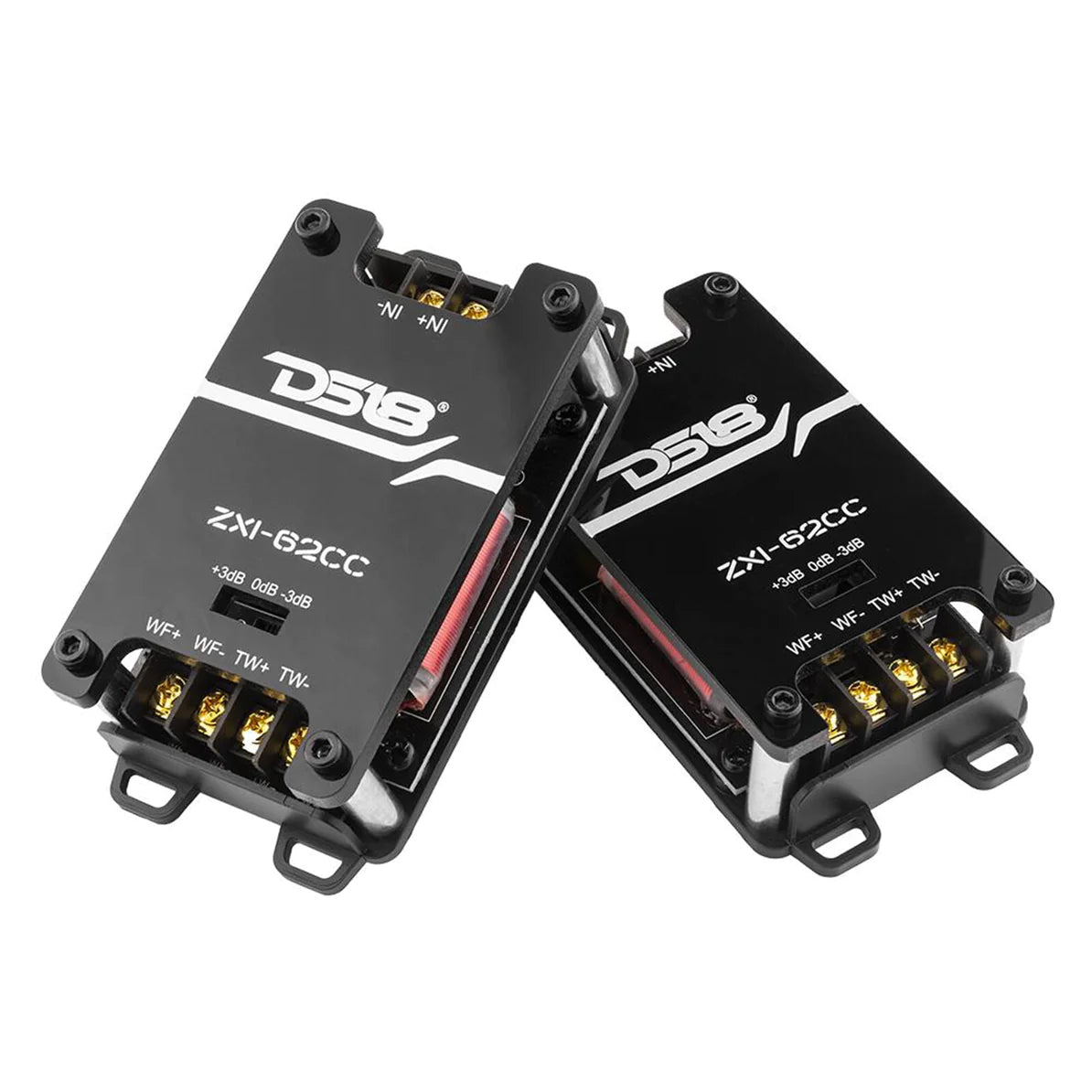

CROSSOVER SPECIFICATIONS & FEATURES:
Passive Crossover Ways: 2 Ways
Frequency Crossover point: 3.5Khz
Cut-Off Slope: 12 dB/Oct
Tweeter Attenuation: (+/- 3dB)
Capacitor Type: NP
Coil Type: KSV
Terminal Type: Screw-On
Housing Material: ABS / Acrylic
Adjustments: Tw Attenuation
Extra Features: Pt Tw protection
Pair: Yes
THIELE & SMALL PARAMETERS:
Equivalent Volume: 10.36L
Excursion (one way): 2.7mm
Free Air Resonance: 64Hz
Mechanical Factor: 9.5
Electrical Factor: 0.85
Total Factor: 0.78
This DS18 component system will bring a full range of frequencies to your ears and with incredible sound quality you will enjoy. DS18's ZXi line is both highly innovative and intuitive making it an extremely versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5" that handles 80 watts RMS and 240 Max watts. It has a 89 DB sensitivity rating so you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30 watt RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossovers will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!
Grills are included!
This Listing Includes:
(1) DS18 6.5" Component Speaker System
Features:
-Highly durable and extremely loud design built for the average to extreme audio systems
-Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power
-Component design will bring a full range of frequencies to your ears and with great sound quality
GENERAL SPECIFICATIONS:
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohm
RMS Power Handing: 80W
MAX Power Handing: 240W
Sensitivity (1w/1m): 88dB
Frequency Response: 40Hz-20Khz
Recommended HI Pass Crossover: 60Hz
Speaker Type: 2-Way
WOOFER SPECIFICATIONS:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 14.4 oz / 410g
Grill Included: Yes
Pair: Yes
TWEETER SPECIFICATIONS:
Nominal Diameter: 1.25" (31.7mm)
Voice Coil Diameter: 1"(25.5mm)
Voice Coil Former Material: ASV
Winding Material: EISVM
Diaphragm Material: SILK
Magnet Material: Neodymium
Magnet Weight: 0.46 oz / 13g
Pair: Yes
CROSSOVER SPECIFICATIONS & FEATURES:
Passive Crossover Ways: 2 Ways
Frequency Crossover point: 3.5Khz
Cut-Off Slope: 12 dB/Oct
Tweeter Attenuation: (+/- 3dB)
Capacitor Type: NP
Coil Type: KSV
Terminal Type: Screw-On
Housing Material: ABS / Acrylic
Adjustments: Tw Attenuation
Extra Features: Pt Tw protection
Pair: Yes
THIELE & SMALL PARAMETERS:
Equivalent Volume: 10.36L
Excursion (one way): 2.7mm
Free Air Resonance: 64Hz
Mechanical Factor: 9.5
Electrical Factor: 0.85
Total Factor: 0.78
