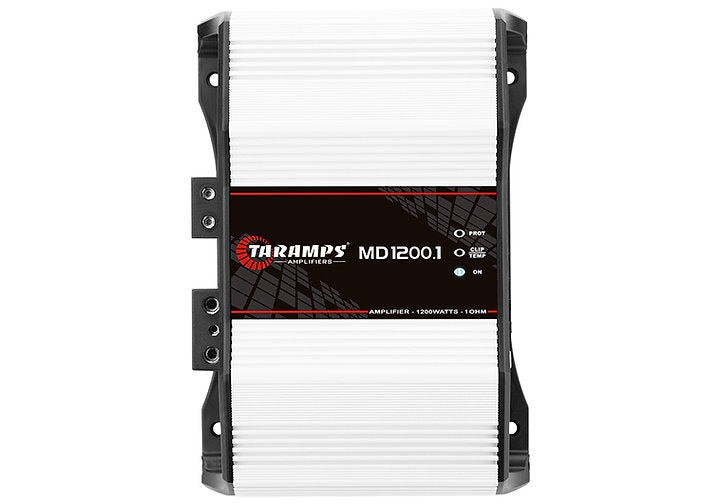

Taramps MD 1200.1 Car Audio Amplifier 1 Channel 8000 Watts RMS Car Audio Amplifier 1 ohm

Taramps Amplifier Module Class D (1 Channel 1.200 Watts RMS)

"The Taramps MD 1200 in the 1-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 1 OHM: 1200W RMS
@ 12.6 VDC - 2 OHMS: 1000W RMS
INPUT SENSITIVITY 220mV
SIGNAL TO NOISE RATIO >88dB
FREQUENCY RESPONSE 10Hz to 20KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8») Variable
CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8») Variable
BASS BOOST 0 ~ 10.5dB(50Hz)
THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
EFFICIENCY 77%
INPUT IMPEDANCE 10K ohms
OUTPUT IMPEDANCE 1 ohm
PROTECTION SYSTEM Output Short circuit
High or Low supply voltage
Thermal protection
MIN. SUPPLY VOLTAGE 9 VDC
MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
CONSUMPTION AT REST 1.7A
MAXIMUM MUSIC CONSUMPTION @ 12,6 VDC: 62A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @ 12,6VDC: 124A
DIMENSIONS (WXHXD) 8.98"" x 2.76"" x 6.22"" (228 x 70 x 158mm)
WEIGHT 3.96lb (1,80Kg)
EAN 7898556844802"
