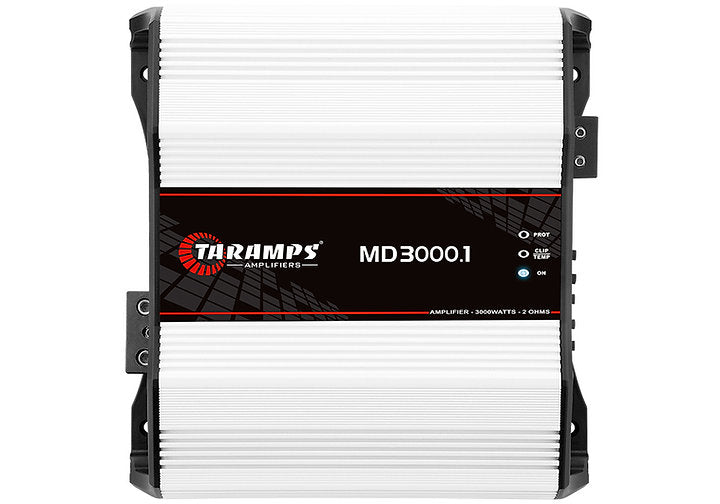

Taramps MD 3000.1 Car Audio Amplifier 1 Channel 8000 Watts RMS Car Audio Amplifier 2 ohm

Taramps Amplifier Module Classe D (1 channel 3.000 Watts RMS)

"The Taramps MD 3000.1 in the 2-ohms version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 3000-Watts RMS. Welcome to Taramps audio world.

TECHNICAL INFORMATION

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 3000W RMS
@ 12.6 VDC - 4 OHMS: 1920W RMS
INPUT SENSITIVITY 220 mV
SIGNAL TO NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8») Variable
CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8») Variable
BASS BOOST 0 ~ 10dB (50Hz) Freq. Variable (35 ~ 55)
EFFICIENCY 82%
INPUT IMPEDANCE 15K Ohms
OUTPUT IMPEDANCE 2 OHMS
PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 1.50 A
MAXIMUM MUSIC CONSUMPTION 145 A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 290 A
DIMENSIONS (WXHXD) 8.98"" x 2.76"" x 8.58"" (228 x 70 x 218mm)
WEIGHT 5.5lb (2,5kg)
EAN 7898556844710"
