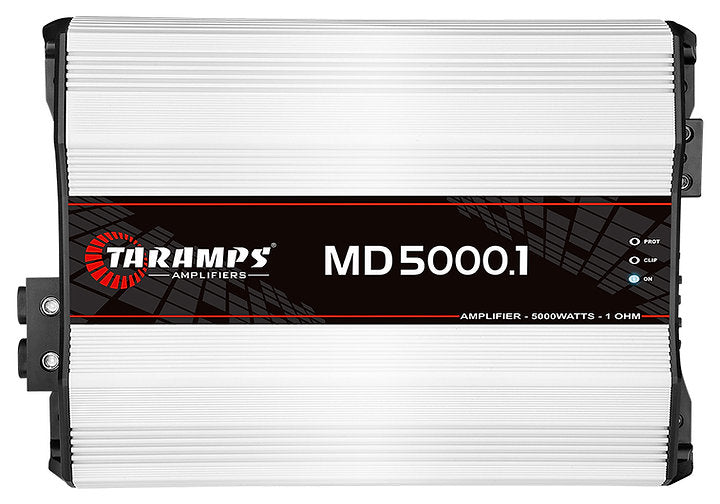

Taramps MD 5000.1 Car Audio Amplifier 1 Channel 8000 Watts RMS Car Audio Amplifier 1 ohm

Taramps Amplifier Module Class D (1 Channel 5.000 Watts RMS)

"The Taramps MD 5000.1 in the 1-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE (10Hz ~10 KHz (-3dB) module. It is classified as mono and has a channel with a maximum power of 5000-Watts RMS. Welcome to Taramps audio world.

TECHNICAL INFORMATION

OPERATION CLASS D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 1 OHM: 5000W RMS
@ 12.6 VDC - 2 OHMS: 3200W RMS
INPUT SENSITIVITY 220mV
SIGNAL TO NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8») Variable
CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8») Variable
BASS BOOST 35Hz ~ 55Hz
0 ~ 10dB (50Hz)
EFFICIENCY 81%
INPUT IMPEDANCE 15K Ohms
OUTPUT IMPEDANCE 1 Ohm
PROTECTION SYSTEM Short-Circuit to output, short on output compared to GND, low impedance at output, High/Low supply voltage and thermal protection
MIN. SUPPLY VOLTAGE 9VDC
MAXIMUM POWER SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 1.20A
MAXIMUM MUSIC CONSUMPTION 244.50A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 489A
DIMENSIONS (WXHXD) 8.98"" x 2.76"" x 12.87"" (228 x 70 x 327mm)
WEIGHT 9.28lb (4,22kg)
EAN 7898556844697"
