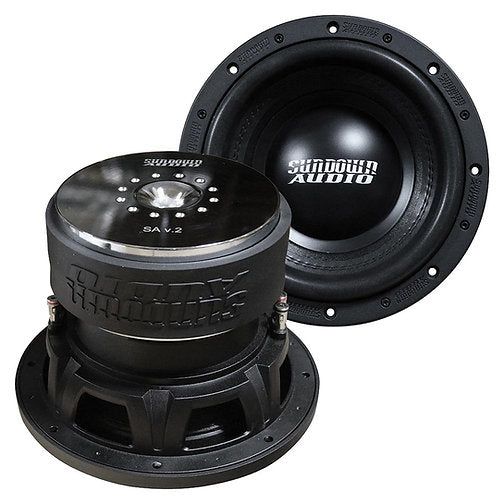

Sundown Audio SA-10 V.2 D4 10" Dual 4 OHM 1000W RMS SUBWOOFER

Sundown Audio 10_ Woofer, 1000W RMS Dual 4 Ohm Voice Coil

1000W RMS
DUAL 4-OHM VOICE COILS

XMAX = 19MM ONE-WAY BY 70% BL (38.0MM PEAK TO PEAK)
VENTED MAGNETIC GAP
OPTIMIZED HIGH-VELOCITY POLE VENT
INNOVATIVE HIGH-VELOCITY VENTED FRAME SPACER RING
BLACK ALUMINUM 2.75Ó VOICE COIL FORMER FOR SUPERIOR HEAT DISSIPATION
HIGH TEMPERATURE COPPER VOICE COIL WIRE
LARGE ALUMINUM FARADAY RING (MAGNET ID)
SPRING LOADED TERMINALS
STITCHED-ON DOUBLE ÒXLÓ TINSEL LEADS TO PREVENT FATIGUE AND FAILURE
HIGH STRENGTH CAST ALUMINUM FRAME

ENCLOSURE RECOMMENDATIONS:
MOUNTING DEPTH: 6.92_
CUTOUT DIAMETER: 9.19_
MAGNET DIAMETER: 7.80_
SEALED ENCLOSURE: NOT SUGGESTED
PORTED ENCLOSURE: 1.0 FT^3 TUNED @35HZ (F3 OF ~30HZ)
MAGNET DIAMETER: 7.80_
