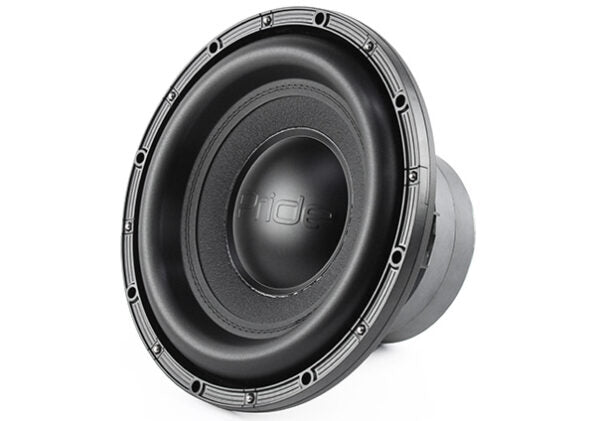

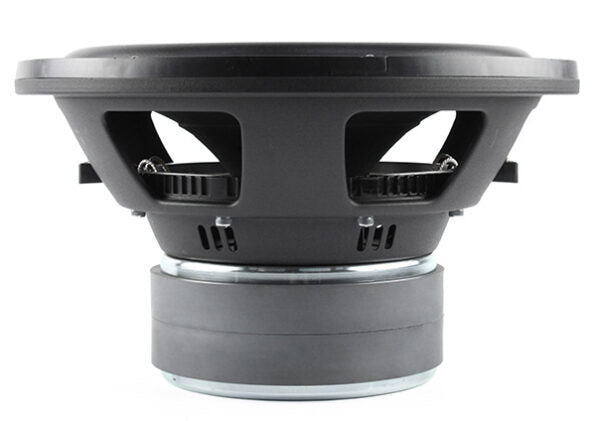

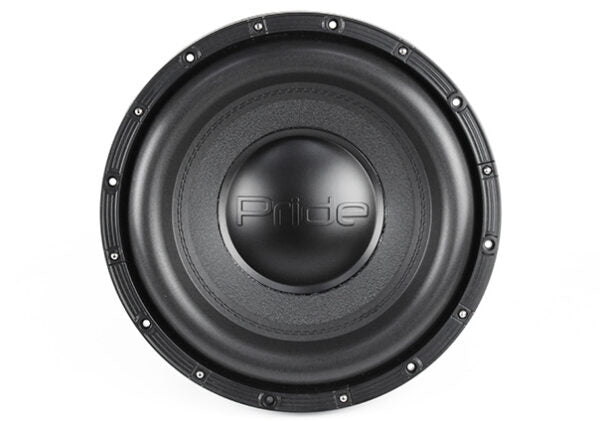

Subwoofer M.12 15" S 0.4
Product description
Shipping & Return
Product reviews
New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.
The subwoofer has an honest RMS – 1200 watts, as well as even better efficiency than previous models.
Voice coil – 2,8″ round copper
| General feature | |
|---|---|
| Power Handling (RMS) | 1200 W |
| VC diameter / material | 2,8" round copper |
| VC wire insulation | Polyimide |
| Frame material | Steel |
| Magnet size and q-ty | 170*26mm x 2 pcs / 6,69*1,02" x 2 pc |
| Spider diameter and q-ty | 193mm x 4 pcs / 7,6" x 4 pcs |
| Cone material | Paper with glass fiber |
| Dust cap material | Hi-temp ABS |
| Parameters | |
| DC Resistance (Re) | 0,4 Ω |
| Free Air Resonance (Fs) Hz | 29,2 |
| Moving Mass (Mms) g | 325 |
| BL Tm | 6,3 |
| Total Speaker “Q” (Qts) | 0,64 |
| Electrical Q (Qes) | 0,73 |
| Mechanical Q (Qms) | 5,1 |
| Equivalent Compliance (Vas) L | 57,5 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 19 |
| Sensitivity (1 W / 1 m) dB | 86,7 |
| Effective Piston Area (Sd) cm² | 774 |
| Physical Specifications | |
| Overall Diameter | 390mm / 15,35" |
| Mounting Hole Diameter | 352mm / 13,86" |
| Mounting Depth | 187mm / 7,36" |
| Driver Displacement | 3,5 l / 0,92 Gal |
| Net Weight | 10,6 kg / 23,37 lbs |
