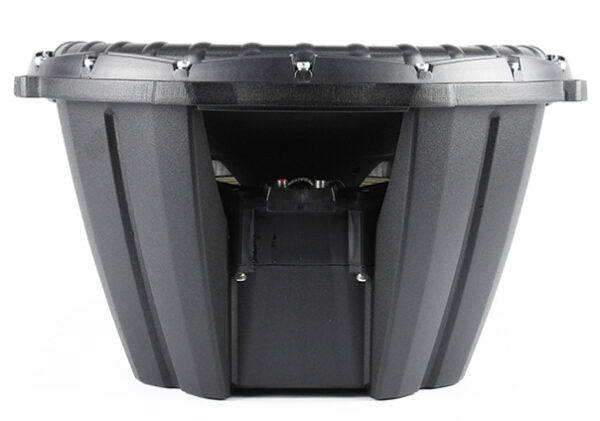

Subwoofer M.16 15" S 0.4
SKU: M16.15 S0.4
Regular price
$540.00
Sale price
$540.00
Regular price
$0.00
Subwoofer M.16 15" S 0.4
Product description
Shipping & Return
Product reviews
New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.
The subwoofer has an honest RMS – 1600 watts, as well as even better efficiency than previous models.
Voice coil – 3,2″ round copper
| General feature | |
|---|---|
| Power Handling (RMS) | 1600 W |
| VC diameter / material | 3,2" round copper |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 190*25mm x 2 pcs / 7,48*0,98" x 2 pcs |
| Spider diameter and q-ty | 230 mm x 4 pcs / 9,06" x 4 pcs |
| Cone material | Paper with glass fiber |
| Dust cap material | Hi-temp ABS |
| Parameters | |
| DC Resistance (Re) | 0,4 Ω |
| Free Air Resonance (Fs) Hz | 26,1 |
| Moving Mass (Mms) g | 470 |
| BL Tm | 7,3 |
| Total Speaker “Q” (Qts) | 0,46 |
| Electrical Q (Qes) | 0,49 |
| Mechanical Q (Qms) | 4,85 |
| Equivalent Compliance (Vas) L | 65,2 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 21 |
| Sensitivity (1 W / 1 m) dB | 86 |
| Effective Piston Area (Sd) cm² | 845 |
| Physical Specifications | |
| Overall Diameter | 397mm / 15,63" |
| Mounting Hole Diameter | 370mm / 14,57" |
| Mounting Depth | 200mm / 7,87" |
| Driver Displacement | 5 l / 1,32 Gal |
| Net Weight | 13,6 kg / 29,98 lbs |
