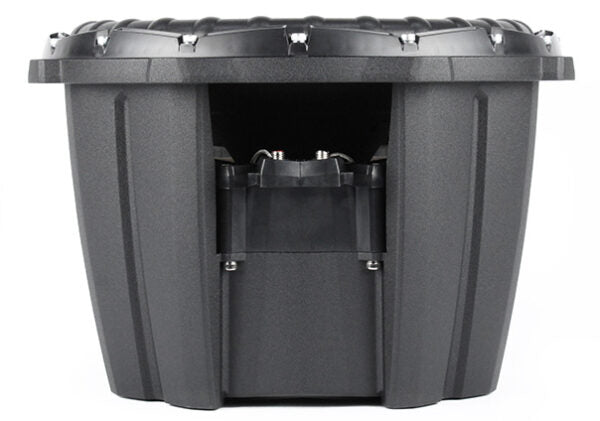

Subwoofer M.20 12" D 1.6
New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.
The subwoofer has an honest RMS – 2000 watts, as well as even better efficiency than previous models.
Voice coil – 3,2″ round copper
|Power Handling (RMS)||2000 W|
|VC diameter / material||3,2" round copper|
|VC wire insulation||Polyimide|
|Magnet size and q-ty||210*27mm x 2 pcs / 8,27*1,06" x 2 pcs|
|Spider diameter and q-ty||230mm x 5pcs / 9,06" x 5pcs|
|Cone material||Paper with glass fiber|
|Dust cap material||Hi-temp ABS|
|DC Resistance (Re)||0,4 Ω|
|Free Air Resonance (Fs) Hz||29,5|
|Moving Mass (Mms) g||410|
|Total Speaker “Q” (Qts)||0,31|
|Electrical Q (Qes)||0,34|
|Mechanical Q (Qms)||4,31|
|Equivalent Compliance (Vas) L||33,2|
|One-Way Linear Excursion (Xmax) (BL 50%) mm||23|
|Sensitivity (1 W / 1 m) dB||85,7|
|Effective Piston Area (Sd) cm²||530|
|Overall Diameter||325mm / 12,8"|
|Mounting Hole Diameter||307,5mm / 12,11"|
|Mounting Depth||188mm / 7,4"|
|Driver Displacement||4 l / 1,06 Gal|
|Net Weight||18,2 kg / 40,12 lbs|
