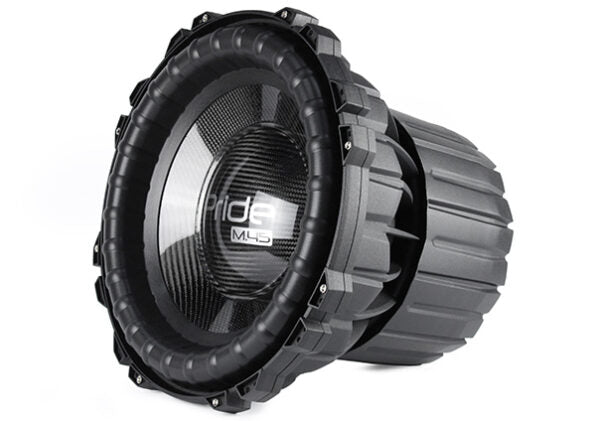

Subwoofer M.45 15 D 0.75
SKU: M45.15 D0.75
Regular price
$1,900.00
Sale price
$1,900.00
Regular price
$2,280.00
Subwoofer M.45 15 D 0.75
Product description
Shipping & Return
Product reviews
New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.
The subwoofer has an honest RMS – 4500 watts, as well as even better efficiency than previous models.
| General feature | |
|---|---|
| Power Handling (RMS) | 4500 W |
| VC diameter / material | 4" Flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 256*26mm x 3 pcs / 10,08*1,02" x 3 pcs |
| Spider diameter and q-ty | 250mm x 6pcs / 9,84" x 6pcs |
| Cone material | Carbon (real) |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 0,75+0,75 Ω |
| Free Air Resonance (Fs) Hz | 26,4 |
| Moving Mass (Mms) g | 439 |
| BL Tm | 19,9 |
| Total Speaker “Q” (Qts) | 0,233 |
| Electrical Q (Qes) | 0,251 |
| Mechanical Q (Qms) | 3,88 |
| Equivalent Compliance (Vas) L | 87,9 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 36 |
| Sensitivity (1 W / 1 m) dB | 90,1 |
| Sensitivity (2,83 V / 1 m) dB | 98,2 |
| Effective Piston Area (Sd) cm² | 840 |
| Physical Specifications | |
| Overall Diameter | 397mm / 15,63" |
| Mounting Hole Diameter | 365mm / 14,37" |
| Mounting Depth | 275mm / 10,83" |
| Driver Displacement | 8 l / 2,11 Gal |
| Net Weight | 43 kg / 94,8 lbs |
