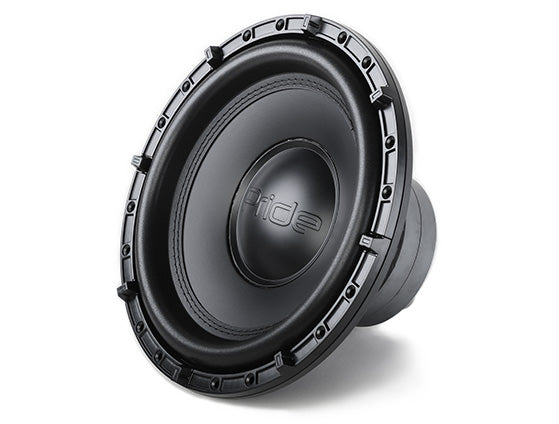

Subwoofer M.6 12" S 0.4

SKU: M6.12 S0.4

$155.00
$155.00 $186.00
Ask a question Share

Subwoofer M.6 12" S 0.4

Product description

New series – M.
Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.

The subwoofer has an honest RMS – 600 watts, as well as even better efficiency than previous models.
Voice coil – 2″ round copper

General feature
Power Handling (RMS) 600 W
VC diameter / material 2" round copper
VC wire insulation Polyimide
Frame material Steel
Magnet size and q-ty 140*20 mm x 2 pcs / 5,51*0,79" x 2 pcs
Spider diameter and q-ty 160 mm x 2 pcs / 6,3" x 2 pcs
Cone material Paper with glass fiber
Dust cap material Hi-temp ABS
Parameters
DC Resistance (Re) 0,4 Ω
Free Air Resonance (Fs) Hz 35
Moving Mass (Mms) g 210
BL Tm 4,6
Total Speaker “Q” (Qts) 0,58
Electrical Q (Qes) 0,65
Mechanical Q (Qms) 5,28
Equivalent Compliance (Vas) L 38,5
One-Way Linear Excursion (Xmax) (BL 50%) mm 15
Sensitivity (1 W / 1 m) dB 86,6
Effective Piston Area (Sd) cm² 507
Physical Specifications
Overall Diameter 316 mm / 12,44 inch
Mounting Hole Diameter 279 mm / 10,99 inch
Mounting Depth 142,5 mm / 5,61 inch
Driver Displacement 2 l / 0,53 Gal
Net Weight 5,6 kg / 11,02 lbs
